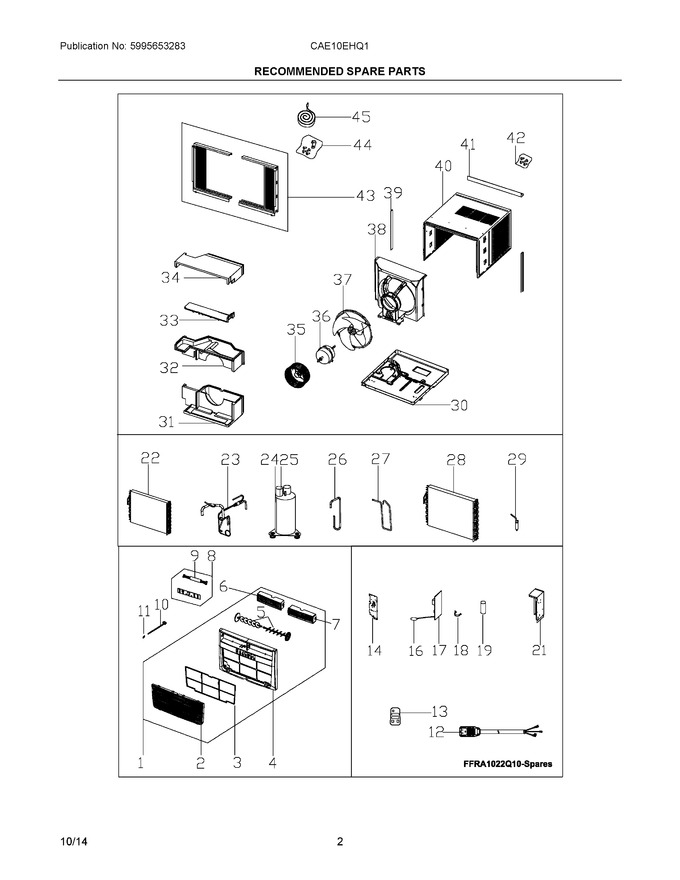

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496488		Front Assembly, Complete Panel		Appelez-nous	-
2	5304476793		Panel, Front Grille, Tilt-out				$ 33.08
3	5304535830		Filter, Air, Plastic Frame   (Replaces: 5304476794)				$ 7.39
4	5304496489		Frame, Front Assembly		Appelez-nous	-
5	5304482748		Louver, Vertical		Appelez-nous	-
6	5304482749		Louver, Horizontal, Left		Appelez-nous	-
7	5304482750		Louver, Horizontal, Right		Appelez-nous	-
8	5304491946		Pc Board, Display/input		Appelez-nous	-
9	5304482356		Wire, Connecting		Appelez-nous	-
10	5304476178		Door, Vent Control, With Lever		Appelez-nous	-
11	5304520877		Sleeve, Vent Door Assy, Guide   (Replaces: 5304476179)		Appelez-nous	-
12	5304476180		Power Cord, Electric, Lcdi				$ 211.10
13	5304482751		Remote Control, Transmitter		Appelez-nous	-
14	5304476182		Cover, Control Box		Appelez-nous	-
16	5304504724		Sensor, Ambient Temp, Thermistor   (Replaces: 5304487548)				$ 19.85
17	5304496237		Pc Board, Main, Control/power		Appelez-nous	-
18	5304471203		Strap, Capacitor Clamp		Appelez-nous	-
19	5304476066		Capacitor				$ 157.35
21	5304492004		Control Box		Appelez-nous	-
22	5304495112		Evaporator, +capillary Tube		Appelez-nous	-
23	5304495113		Tube, Capillary		Appelez-nous	-
24	5304493235		Compressor, With Overload		Appelez-nous	-
25	5304476292		Overload Protector, Compressor		Appelez-nous	-
26	5304495121		Tube, Suction		Appelez-nous	-
27	5304495122		Tube, Discharge		Appelez-nous	-
28	5304476233		Condenser				$ 441.00
29	5304476201		Filter-drier				$ 38.98
30	5304495101		Base, Unit Chassis		Appelez-nous	-
31	5304485967		Scroll, Blower Housing, Bottom		Appelez-nous	-
32	5304495102		Scroll, Blower Housing, Middle		Appelez-nous	-
33	5304495103		Enclosure, Air Duct		Appelez-nous	-
34	5304485969		Scroll, Blower Housing, Top		Appelez-nous	-
35	5304485443		Blower Wheel, Centrifugal Fan		Appelez-nous	-
36	5304493236		Motor, Fan		Appelez-nous	-
37	5304504802		Fan Blade, Axial   (Replaces: 5304476059)		Appelez-nous	-
38	5304495104		Shroud, Condenser/fan		Appelez-nous	-
39	5304476197		Retainer, Shutter, Cabinet Sides				$ 9.87
40	5304476198		Cabinet, Wrapper/sleeve		Appelez-nous	-
41	5304476199		Rail, Shutter Track, Top Angle		Appelez-nous	-
42	5304472191		Screw Kit, Top Rail Mount				$ 16.22
43	5304476200		Window Filler Kit, Slider Panels, Accordion				$ 111.99
44	5304491953		Hardware, Mounting, Screws/locks				$ 19.52
45	5304472211		Seal Kit, Foam, Sash Filler				$ 36.12
