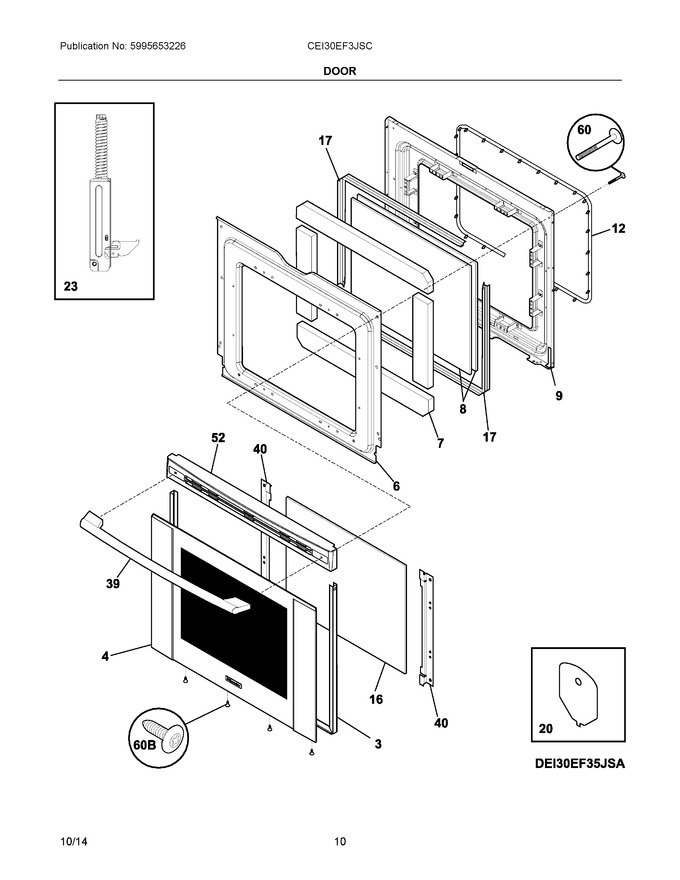

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 64.58
4	316453038		Glass Assembly, Oven Door, W/tape, Outer				$ 266.75
6	316503800		Shield, Wool				$ 106.89
7	316513000		Insulation, Oven Door				$ 90.56
8	316502500		Glass, Door, Inner, (2)			Immediately	$ 128.50
9	316503621		Liner, Oven Door, Cobalt				$ 165.74
12	316405000		Seal, Oven Door			Immediately	$ 199.08
16	316502601		Glass, Door, Airwash   (Replaces: 316502600)				$ 230.94
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 28.65
20	316533801		Plate, Distribution, Load			Immediately	$ 6.30
23	316575908		Hinge, Oven Door, Teal				$ 161.60
39	316380802		Handle, Door, Stainless				$ 278.73
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316382102		Cap, Door Trim, Stainless				$ 242.03
60	316439503		Screw, Handle Mtg., #10-24 X 1.000, (2)		Appelez-nous	-
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.95
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	241873301		Badge, Electrolux   (Replaces: 316517500)				$ 12.39
