SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

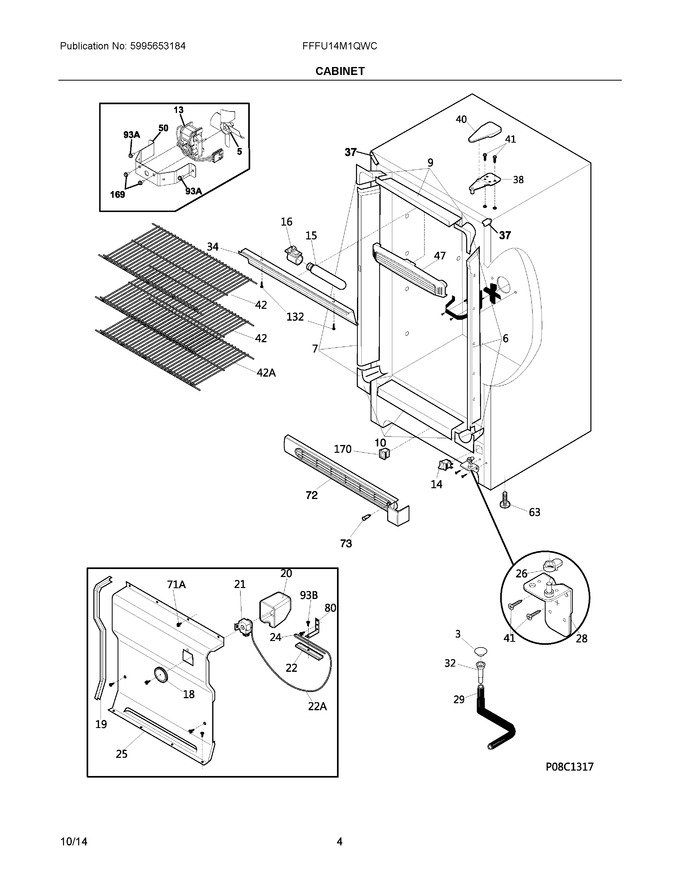

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 19.28
5	297259600		Fan Blade, Evaporator				$ 9.50
6	297435603		Breaker, U12/u14, No Lock		Appelez-nous	-
7	297435602		Breaker, U12/u14, W/lock		Appelez-nous	-
9	297381501		Breaker, Top				$ 48.91
10	297381502		Breaker, Bottom		Appelez-nous	-
12	242062801		Nameplate, White				$ 11.65
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 72.84
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 82.76
16	297139501		Socket, Light/lamp, 25 W				$ 21.69
18	216707200		Knob, Temp Control				$ 49.00
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
20	297013800		Cover-control Housing				$ 80.43
21	5304514707		Control-temperature   (Replaces: 297216034)			Immediately	$ 91.00
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297442700		Cover, Evaporator		Appelez-nous	-
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 16.87
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 15.27
32	5304511843		Drain   (Replaces: 297382000)				$ 15.27
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Wire Retainer				$ 24.91
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
40	297164400		Cover-hinge				$ 14.06
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	297441904		Shelf, 16.69 X 27.88, Wire				$ 104.42
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 28.12
50	08013207		Bracket-fan Motor				$ 12.92
59	5304497655		Basket				$ 133.64
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297387806		Grille, W/signal Light   (Replaces: 297387802)				$ 70.88
73	5304495394		Light Signal, Round, Green			Immediately	$ 31.33
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 12.05
132	5304460601		Screw, 6-20ab X 3/8		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 14.18
170	297280400		Valve, Breather				$ 11.25
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 67.73
42A	5304528978		Shelf, 12.50 X 27.88, Wire   (Replaces: 297441903)				$ 106.84
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	5304495532		Energy Guide		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
