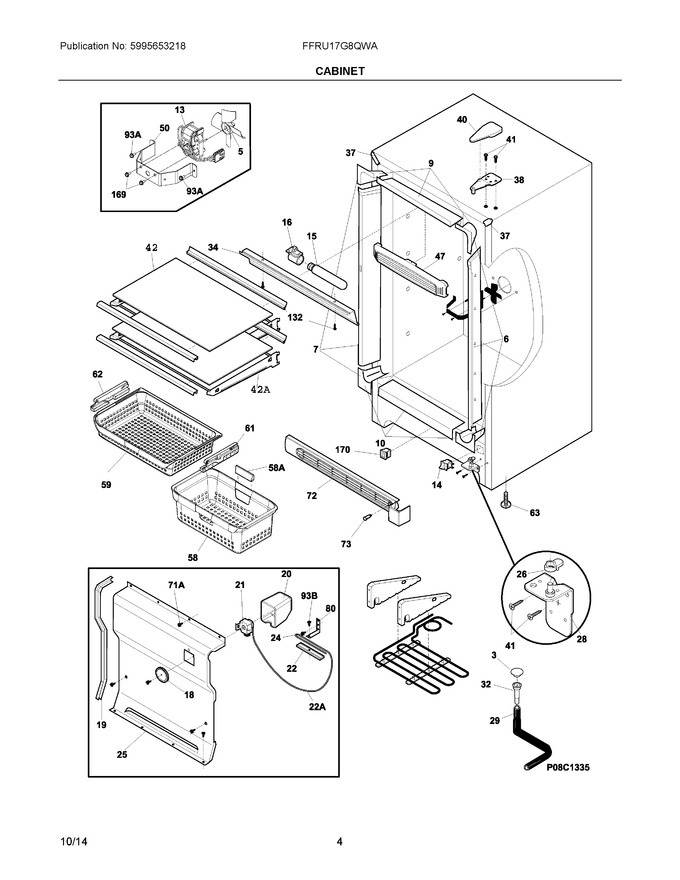

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
5	297259600		Fan Blade, Evaporator				$ 9.50
6	297435601		Breaker				$ 50.35
9	297403901		Breaker, Top				$ 61.58
10	297403902		Breaker, Bottom				$ 67.58
12	242062801		Nameplate, White				$ 11.65
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 72.84
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 82.76
16	297139501		Socket, Light/lamp, 25 W				$ 21.69
18	216707200		Knob, Temp Control				$ 49.00
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
20	216967201		Cover, Temp Control				$ 16.87
21	297415203		Control, Temperature   (Replaces: 297415201)				$ 139.77
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, 1/2" Pin, Bottom Rh   (Replaces: 297416300)				$ 16.87
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 297382000)				$ 15.27
34	297184400		Shield-light				$ 21.16
37	297273904		Trim-cabinet Corner, White, (2)   (Replaces: 297273900)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
40	297164400		Cover-hinge				$ 14.06
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	5304528979		Shelf, 16.69 X 23.88, Wire   (Replaces: 297441905)			Immediately	$ 101.19
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 28.12
50	08013207		Bracket-fan Motor				$ 12.92
58	808618002		Basket, Lower   (Replaces: 5304494019)				$ 137.66
59	808617902		Basket   (Replaces: 5304493990)				$ 137.66
61	5304493996		Support, Hanging Basket, Rh		Appelez-nous	-
62	5304493997		Support, Hanging Basket, Lh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297387920		Grille/kickplate, Reversible   (Replaces: 297387901)				$ 67.73
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 12.05
132	5304460601		Screw, 6-20ab X 3/8		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 14.18
170	297280400		Valve, Breather				$ 11.25
10A	297334500		Heater-drain Pan				$ 72.30
10A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 67.73
31A	297165802		Pan-drain				$ 55.86
42A	5304497872		Shelf, Assy, Glass, Lower				$ 195.30
58A	808408301		Clip, Basket Handle, Blue				$ 21.27
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 16.01
NI	5304495698		Energy Guide		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIAA	5304494016		Clip, Basket Handle, Green				$ 11.60
NIB	5304494017		Clip, Basket Handle, Yellow		Appelez-nous	-
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
NIC	808408304		Clip, Basket Handle, Red				$ 23.63
