01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

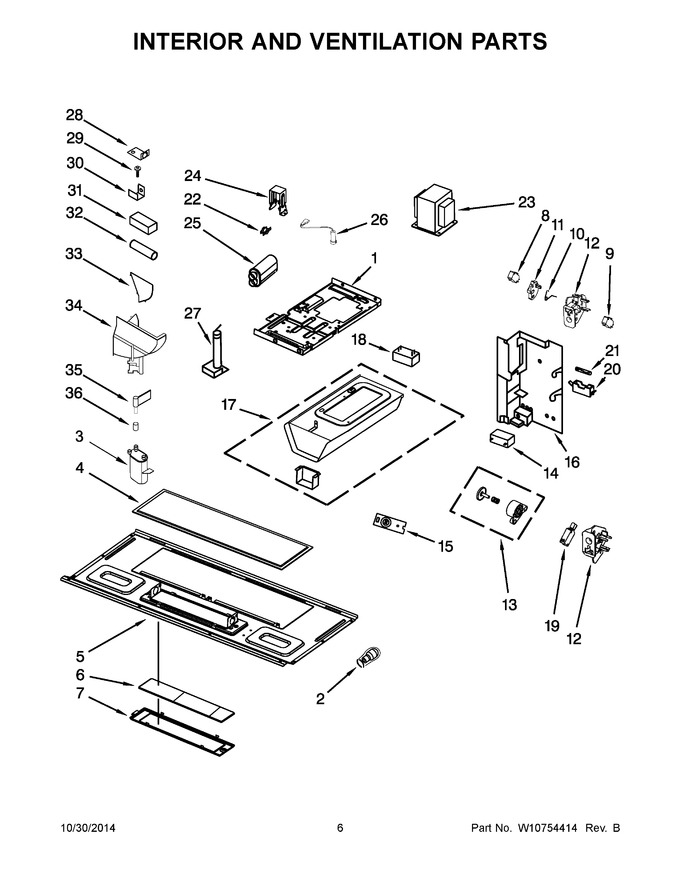

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10248270 | Chassis |
|
- | |||||
| 2 | W10709921 | Lamp, Halogen (Replaces: W10208564) |
|
Immediately | $ 21.22 | ||||
| 3 | 8206082 | Thermoactuator, Forced Convection |
|
- | |||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W10245196 | Plate, Bottom |
|
$ 257.07 | |||||
| 6 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 350.94 | |||||
| 7 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 8 | W10727360 | Microswitch V15t16-cz200/nc/no (Replaces: W10269457) |
|
Immediately | $ 5.82 | ||||
| 9 | W10269458 | Microswitch V15t16-cc200/nc |
|
Immediately | $ 40.11 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 12.14 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 17.83 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 22.37 | ||||
| 13 | W10197758 | Assembly, Piston |
|
Immediately | $ 93.36 | ||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 44.36 | |||||
| 15 | W10163422 | Thermistor |
|
$ 179.70 | |||||
| 16 | W10640884 | Air Guide, Lower |
|
$ 25.63 | |||||
| 17 | W10310720 | Chassis Assembly |
|
- | |||||
| 18 | W10245190 | Resistor, Cement |
|
- | |||||
| 19 | W10269460 | Microswitch V15t16-cp200/no |
|
Immediately | $ 45.95 | ||||
| 20 | W10245194 | Holder, Fuse |
|
$ 87.31 | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 22 | W10248275 | Cavity, Thermal Cutout |
|
- | |||||
| 23 | W10733411 | Transformer, High Voltage |
|
$ 218.99 | |||||
| 24 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 25 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 195.87 | |||||
| 26 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 27 | W10245188 | Support, High Voltage Diode |
|
$ 27.09 | |||||
| 28 | W10259248 | Cover, Thermostat |
|
- | |||||
| 29 | W10599629 | Thermostat, Convection (Replaces: 8206068) |
|
$ 35.84 | |||||
| 30 | 8206223 | Clip |
|
$ 54.51 | |||||
| 31 | W10245194 | Holder, Fuse |
|
$ 87.31 | |||||
| 32 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 33 | W10248274 | Plate, Housing |
|
- | |||||
| 34 | W10248276 | Housing, Valve |
|
- | |||||
| 35 | W10248277 | Valve |
|
- | |||||
| 36 | W10248278 | Screw |
|
- | |||||
| 12A | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 8.07 |
