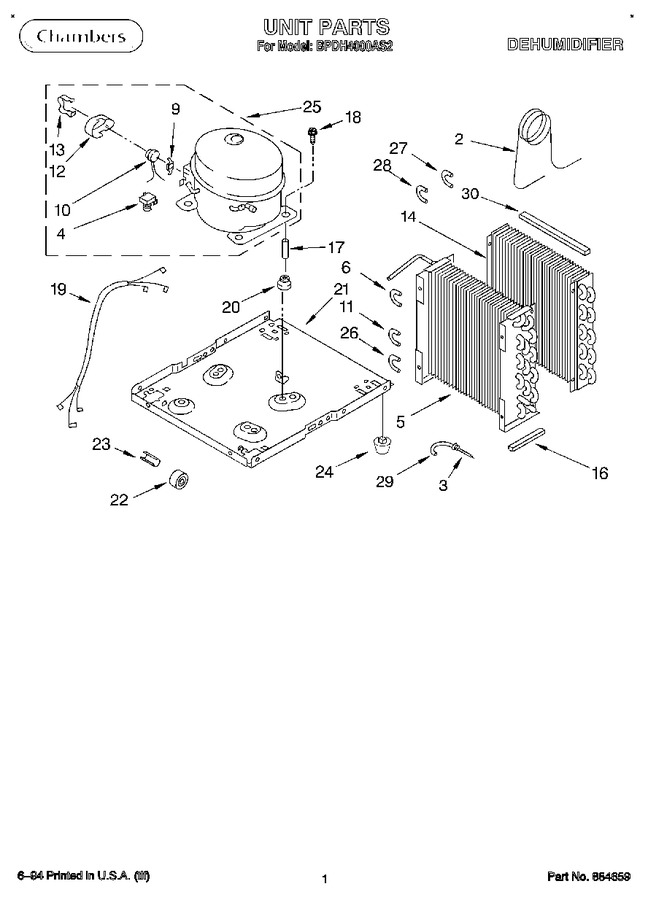

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1162154		Tube, Restrictor (46.0`` Length)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 84.42
4	950058		Relay		Appelez-nous	-
5	1163097		Condenser		Appelez-nous	-
6	1158407		Bend, Return (1)		Appelez-nous	-
9	950061		Spring, Overload		Appelez-nous	-
10	1163837		Overload		Appelez-nous	-
11	708531		Bend, Return (8)		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	1162933		Evaporator		Appelez-nous	-
16	1162372		Seal		Appelez-nous	-
17	646498		Sleeve (4)		Appelez-nous	-
18	1166034		Bolt, 1/4-28 X 1`` (4)		Appelez-nous	-
19	1164816		Harness, Wire		Appelez-nous	-
20	646499		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
23	489015		Roll Pin-2.0 Lg		Appelez-nous	-
24	951886		Glide-natural (2)		Appelez-nous	-
25	1164774		Compressor (complete Assembly)		Appelez-nous	-
26	708532		Bend, Return (4)		Appelez-nous	-
27	855199		Bend, Return (8)		Appelez-nous	-
28	854624		Bend, Return (1)		Appelez-nous	-
29	1156533		Bend, Return (1)		Appelez-nous	-
30	WP489069		Screw 8-18 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
30	1162348		Seal, Evaporator Top		Appelez-nous	-
30	1162476		Ptc Start Device		Appelez-nous	-
30	1162477		Ptc Clamp		Appelez-nous	-
30	1162377		Wire Assy. (2)		Appelez-nous	-
	LIT1165310		Diagram, Wiring		Appelez-nous	-
	LIT1162709		Use & Care Guide Manual		Appelez-nous	-
	LIT1165327		Sheet, Tech		Appelez-nous	-
