SELECT A DIAGRAM
New Model Search:

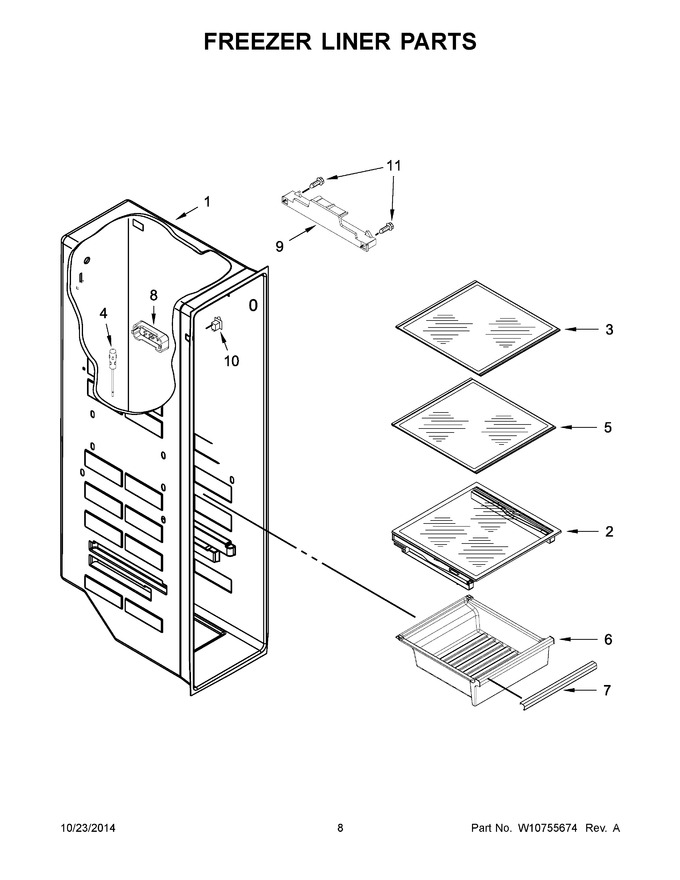

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10836801 | Cover Assembly (Replaces: W10527863) |
|
$ 192.37 | |||||
| 3 | W11130202 | Shelf, Glass Upper (Replaces: W10527848) |
|
$ 235.29 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | W11130203 | Shelf, Glass Lower (Replaces: W10527849) |
|
$ 235.29 | |||||
| 6 | W11106313 | Pan, Freezer Upper (also Order Item 7) (Replaces: W10260983) |
|
$ 123.17 | |||||
| 7 | W11236850 | Trim, Handle (Replaces: W10260986) |
|
- | |||||
| 8 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 9 | W10294289 | Slide, Container |
|
- | |||||
| 10 | W11396033 | Switch, Rocker Arm (Replaces: W10656771) |
|
Immediately | $ 37.30 | ||||
| 11 | 718257 | Screw (Replaces: 489100) |
|
- |
