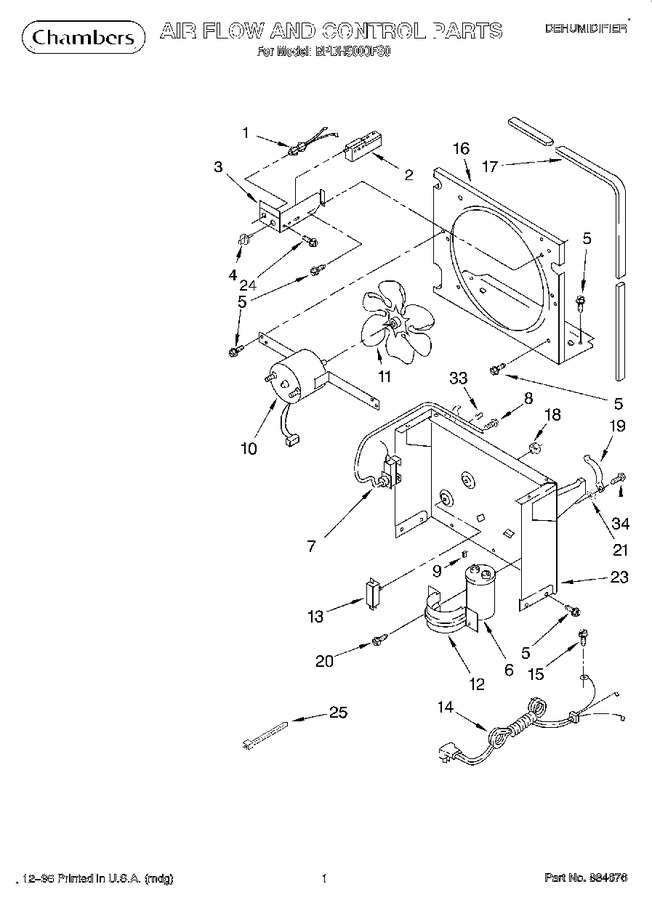

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1164804		Light, Indicator		Appelez-nous	-
2	1166055		Humidistat, Control				$ 80.72
3	1167040		Bracket, Control		Appelez-nous	-
4	1166806		Knob, Control		Appelez-nous	-
5	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
6	1162586		Capacitor		Appelez-nous	-
7	1164779		Thermostat, De-icer		Appelez-nous	-
8	WP488234		Screw, 8-32 X 1/4 (2)   (Replaces: 488234)				$ 7.08
9	1159258		Cap, Tab		Appelez-nous	-
10	1164813		Motor, Fan		Appelez-nous	-
11	949645		Blade, Fan		Appelez-nous	-
12	1163801		Bracket, Cap Mtg		Appelez-nous	-
13	999747		Switch, Water Level Control		Appelez-nous	-
14	1164784		Cord, Appliance		Appelez-nous	-
15	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 8.85
16	1166838		Plate, Orifice		Appelez-nous	-
17	1162704		Seal		Appelez-nous	-
18	489001		Palnut, 3/8-32		Appelez-nous	-
19	1161718		Spring, Water Level		Appelez-nous	-
20	WP489069		Screw,8x1/2 (2)   (Replaces: 488480)			Immediately	$ 8.40
21	1168324		Washer, Repair (.062 Thickness)		Appelez-nous	-
23	1163800		Support		Appelez-nous	-
24	1159222		Screw (2)		Appelez-nous	-
25	WPW10339879		Tie, Cable (2)   (Replaces: 602851)				$ 8.30
33	471363		Clamp, Tube To Evaporator Mtg (2)		Appelez-nous	-
34	W11624204		Screw, 8-18 X 5/8   (Replaces: 486194)				$ 14.72
