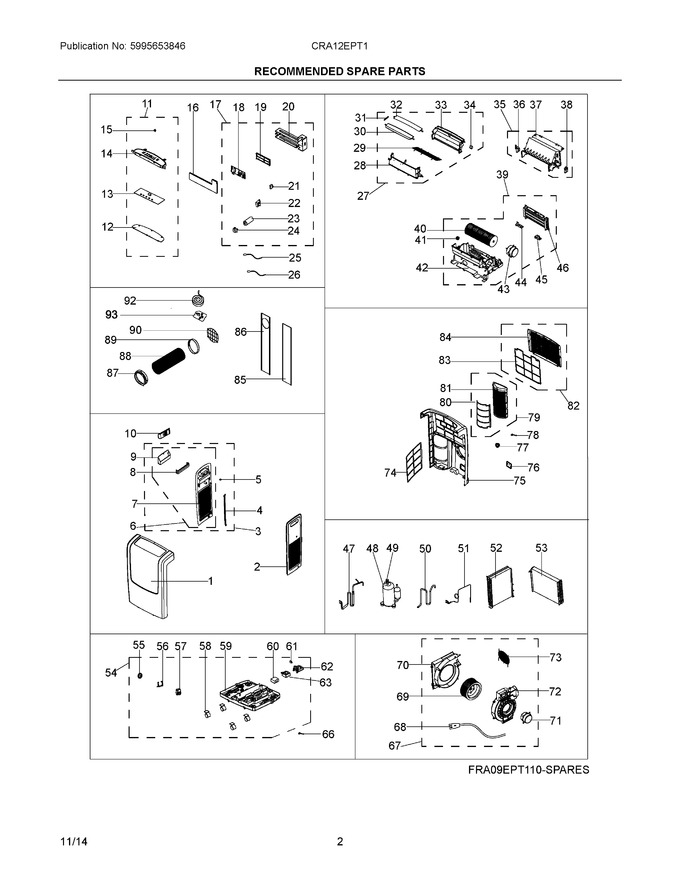

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304479155 | Panel Assembly, Front |
|
- | |||||
| 2 | 5304479156 | Panel, Right Side |
|
- | |||||
| 3 | 5304479157 | Panel Assembly, Left Side |
|
- | |||||
| 4 | 5304479158 | Bar, Support, Scroll/chassis |
|
- | |||||
| 5 | 5304479159 | Switch, Self-locking |
|
- | |||||
| 6 | 5304479160 | Panel Sub-assembly, Left Side |
|
- | |||||
| 7 | 5304479161 | Panel, Left Side |
|
- | |||||
| 8 | 5304479162 | Door, Storage, Remote Control |
|
- | |||||
| 9 | 5304479163 | Compartment, Remote Control |
|
- | |||||
| 10 | 5304479323 | Remote Control, Transmitter |
|
$ 199.66 | |||||
| 11 | 5304479324 | Console Assembly, Control |
|
- | |||||
| 12 | 5304479166 | Cover, Control Panel |
|
- | |||||
| 13 | 5304479167 | Pc Board, Display/input |
|
$ 148.21 | |||||
| 14 | 5304479168 | Panel, Control Mount, W/overlay |
|
- | |||||
| 15 | 5304473963 | Lens, Remote Sensor |
|
- | |||||
| 16 | 5304473964 | Cover, Control Box |
|
- | |||||
| 17 | 5304492163 | Control Box Assembly |
|
- | |||||
| 18 | 5304479328 | Pc Board, Main, Control/power |
|
$ 258.93 | |||||
| 19 | 5304487019 | Bracket, Pc Board Mount |
|
- | |||||
| 20 | 5304473969 | Control Box, Housing, Bottom |
|
- | |||||
| 21 | 5304484402 | Capacitor, Motor, Outdoor Blower |
|
- | |||||
| 22 | 5304473972 | Transformer, Power |
|
- | |||||
| 23 | 5304474928 | Capacitor, Compressor |
|
- | |||||
| 24 | 5304482115 | Strap, Capacitor Clamp |
|
- | |||||
| 25 | 5304476473 | Thermistor, Evaporator, Sensor |
|
- | |||||
| 26 | 5304483216 | Sensor, Temperature |
|
- | |||||
| 27 | 5304479171 | Vent Assembly, Air Discharge |
|
- | |||||
| 28 | 5304479172 | Bracket 1, Louver Mount |
|
- | |||||
| 29 | 5304479173 | Grille, Air Vent Cover |
|
- | |||||
| 30 | 5304479174 | Louver, Horizontal, Down |
|
- | |||||
| 31 | 5304479175 | Link, Louver, Horizontal |
|
- | |||||
| 32 | 5304479176 | Louver, Horizontal, Up |
|
- | |||||
| 33 | 5304479177 | Bracket 2, Louver Mount |
|
- | |||||
| 34 | 5304492148 | Motor, Vent Louvers |
|
- | |||||
| 35 | 5304479193 | Scroll Assembly, Indoor, Top |
|
- | |||||
| 36 | 5304479195 | Support, Front Panel, Right Side |
|
- | |||||
| 37 | 5304479197 | Scroll, Indoor Blower, Top |
|
- | |||||
| 38 | 5304479196 | Support, Front Panel, Left Side |
|
- | |||||
| 39 | 5304479329 | Scroll Assembly, Indoor, Bottom |
|
- | |||||
| 40 | 5304479247 | Blower Wheel, Indoor Fan |
|
$ 97.91 | |||||
| 41 | 5304473990 | Bearing Block, Housing |
|
- | |||||
| 42 | 5304479248 | Scroll, Indoor Blower, Bottom |
|
- | |||||
| 43 | 5304473988 | Motor, Indoor Blower |
|
$ 236.15 | |||||
| 44 | 5304473985 | Bracket, Heater Mount, Right |
|
- | |||||
| 45 | 5304473986 | Bracket, Heater Mount, Left |
|
- | |||||
| 46 | 5304473987 | Heater, Ptc |
|
- | |||||
| 47 | 5304479331 | Tube, Discharge |
|
- | |||||
| 48 | 5304492149 | Compressor, With Overload |
|
- | |||||
| 49 | 5304476291 | Overload Protector, Compressor |
|
- | |||||
| 50 | 5304479332 | Tube, Suction |
|
- | |||||
| 51 | 5304492162 | Tube, Capillary |
|
- | |||||
| 52 | 5304479321 | Condenser |
|
- | |||||
| 53 | 5304487077 | Evaporator |
|
- | |||||
| 54 | 5304486931 | Base Assembly, Chassis |
|
- | |||||
| 55 | 5304474028 | Slinger, Water Wheel, Condensate |
|
- | |||||
| 56 | 5304496613 | Bracket, Slinger Motor |
|
- | |||||
| 57 | 5304479255 | Motor, Slinger |
|
- | |||||
| 58 | 5304479256 | Caster, Roller |
|
$ 29.98 | |||||
| 59 | 5304479257 | Base, Unit Chassis |
|
- | |||||
| 60 | 5304474023 | Float, Bobber |
|
- | |||||
| 61 | 5304474021 | Microswitch, Upper, Overflow |
|
- | |||||
| 62 | 5304486932 | Bracket, Switch Holder |
|
- | |||||
| 63 | 5304486933 | Housing, Float Case |
|
- | |||||
| 66 | 5304479260 | Plug, Drain, Chassis/base |
|
$ 15.18 | |||||
| 67 | 5304479261 | Scroll Assembly, Outdoor Blower |
|
- | |||||
| 68 | 5304487021 | Power Cord, Electric, Lcdi |
|
$ 225.07 | |||||
| 69 | 5304487022 | Blower Wheel, Outdoor Fan |
|
$ 66.05 | |||||
| 70 | 5304479263 | Cover, Scroll, Outdoor Blower |
|
$ 299.99 | |||||
| 71 | 5304479264 | Motor, Outdoor Blower |
|
$ 328.81 | |||||
| 72 | 5304479265 | Scroll, Outdoor Blower |
|
- | |||||
| 73 | 5304479266 | Screen, Exhaust |
|
- | |||||
| 74 | 5304479267 | Filter-b, Side Panel |
|
- | |||||
| 75 | 5304479268 | Panel, Cabinet Back, Rear |
|
- | |||||
| 76 | 5304479269 | Door, Storage, Power Cord |
|
- | |||||
| 77 | 5304474000 | Connector, Drain Hose, Threaded |
|
$ 16.80 | |||||
| 78 | 5304473999 | Plug, Drain Spigot |
|
$ 13.01 | |||||
| 79 | 5304479270 | Air Intake Assembly, Outdoor |
|
- | |||||
| 80 | 5304479309 | Filter-c, Air Intake, Outdoor |
|
- | |||||
| 81 | 5304479310 | Grille, Intake, Upper, Indoor |
|
- | |||||
| 82 | 5304479311 | Air Intake Assembly, Indoor |
|
$ 75.97 | |||||
| 83 | 5304479312 | Filter-a, Air Intake, Indoor |
|
$ 24.57 | |||||
| 84 | 5304479313 | Grille, Air Intake, Indoor |
|
$ 58.96 | |||||
| 85 | 5304484440 | Window Slider-1, No Hole |
|
$ 110.88 | |||||
| 86 | 5304484441 | Window Slider-2, With Hole |
|
$ 116.66 | |||||
| 87 | 5304479114 | Adapter A, Hose-to-unit |
|
$ 31.08 | |||||
| 88 | 4056015342 | Hose, Exhaust (Replaces: 5304479273) |
|
- | |||||
| 89 | 5304538651 | Adapter B, Hose-to-window (Replaces: 5304479274) |
|
- | |||||
| 90 | 5304479275 | Screen, Exhaust Hose |
|
$ 88.60 | |||||
| 92 | 5304472211 | Seal Kit, Foam, Sash Filler |
|
$ 36.12 | |||||
| 93 | 5304484442 | Installation Kit, Mtg. Hardware |
|
$ 14.96 |
