View Diagram in Separate Window
Print Part List

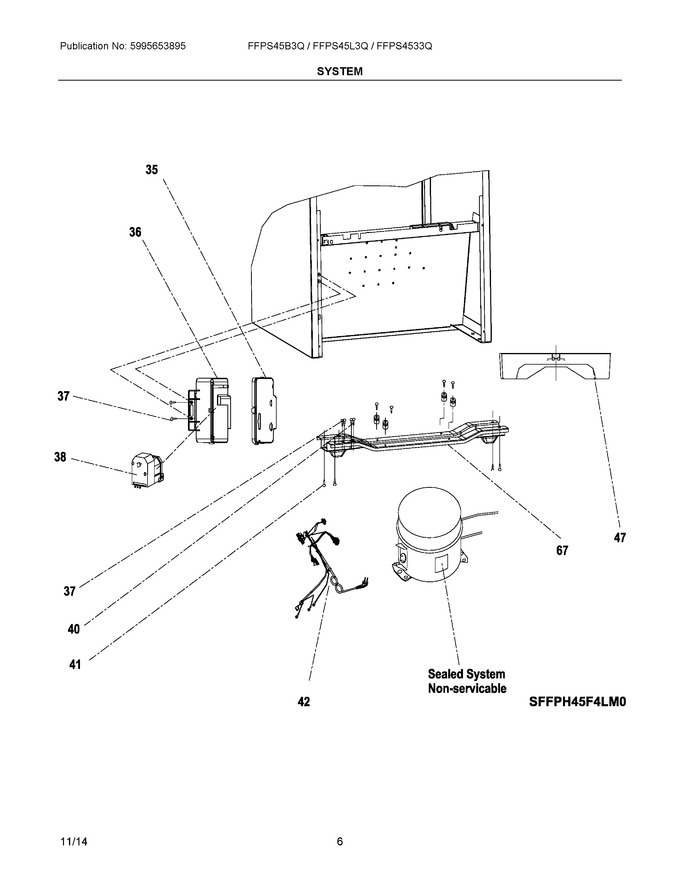

SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet/controls
04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | 5304490982 | Terminal Block, Main |
|
$ 18.76 | |||||
| 36 | 5304490981 | Cover, Terminal Block |
|
- | |||||
| 37 | 5304491052 | Screw, (3) |
|
$ 4.96 | |||||
| 38 | 5304470332 | Timer, Defrost |
|
$ 162.90 | |||||
| 40 | 5304492671 | Screw, (2) |
|
- | |||||
| 41 | 5304492672 | Screw, (4) |
|
$ 7.09 | |||||
| 42 | 5304490983 | Power Cord, Electric |
|
- | |||||
| 47 | 5304492673 | Drip Tray, Evaporator |
|
- | |||||
| 67 | 5304492674 | Base, Compressor Mtg. |
|
- |
