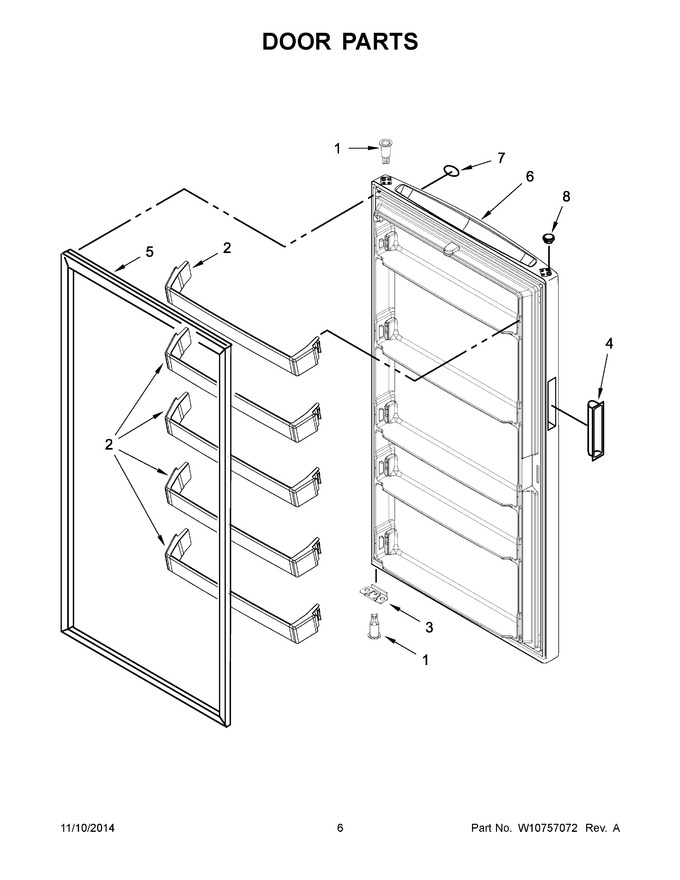

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.19 | |||||
| 2 | WP4-65451-001 | Rail, Door (Replaces: 4-65451-001) |
|
$ 95.09 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 25.07 | |||||
| 4 | W10352523 | Handle, Door (white) |
|
$ 24.00 | |||||
| 5 | W11501317 | Gasket, Door (white) (Replaces: W10574475) |
|
Immediately | $ 282.72 | ||||
| 6 | W10746788 | Door Assembly (white) (Replaces: W10574713) |
|
$ 1,400.10 | |||||
| 7 | W11428492 | Badge, Amana (Replaces: W10200425) |
|
$ 79.59 | |||||
| 8 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 |
