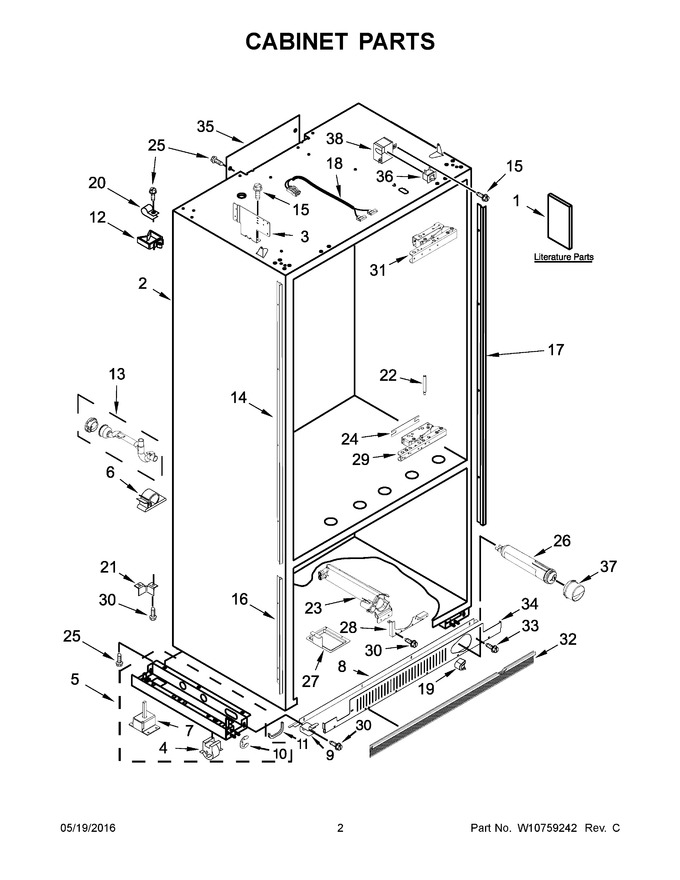

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10728796 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W11042558 | Bracket, Grille Left Hand (grey) (Replaces: W10714143) |
|
$ 95.20 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860229 | Support, Leveler Assembly (left Hand) (Replaces: W10279275) |
|
$ 381.83 | |||||
| 6 | W10663352 | Clip |
|
$ 21.91 | |||||
| 7 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 200.07 | ||||
| 8 | W10634858 | Trim, Top Grille (grey) |
|
$ 250.77 | |||||
| 9 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 43.26 | |||||
| 10 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 11 | 2307584 | Grommet, Crossover Tube |
|
$ 23.40 | |||||
| 12 | W10129069 | Clip, Wire |
|
- | |||||
| 13 | W11291510 | Tube, Drain (Replaces: W10702350) |
|
$ 76.97 | |||||
| 14 | W10687588 | Trim, Side Left Hand (grey) |
|
- | |||||
| 15 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 16 | W10714137 | Trim, Side Left Hand (grey) |
|
$ 87.74 | |||||
| 17 | W10611999 | Trim, Side Left Hand (grey) |
|
Immediately | $ 250.20 | ||||
| 18 | W10740131 | Assembly, Top Switch Jumper Wire |
|
$ 128.84 | |||||
| 19 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 20 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 11.54 | |||||
| 21 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 22 | W10234202 | Pin, Door Stop |
|
$ 91.73 | |||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 24 | W10291661 | Spacer, Hinge |
|
$ 16.87 | |||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 27 | 2318189 | Tray, Filter Drip |
|
$ 148.73 | |||||
| 28 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 80.33 | |||||
| 29 | W10691148 | Hinge, Bottom (grey) |
|
$ 358.82 | |||||
| 30 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 31 | W10691145 | Hinge, Top Left Hand (grey) |
|
Immediately | $ 472.48 | ||||
| 32 | WPW10188547 | Skirt, Grille (black) (Replaces: W10188547) |
|
Immediately | $ 165.28 | ||||
| 33 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 8.38 | ||||
| 34 | W11739145 | Grille, Bottom (Replaces: W10189196) |
|
Immediately | $ 209.08 | ||||
| 35 | W10426957 | Assembly, Air Duct Cover |
|
- | |||||
| 36 | W10606838 | Switch, Light |
|
$ 57.61 | |||||
| 37 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 50.68 | ||||
| 38 | W10167387 | Cover, Switch (left Hand) |
|
$ 77.58 | |||||
| 14A | W10687582 | Trim, Side Right Hand (grey) |
|
$ 242.42 | |||||
| 16A | W10687583 | Trim, Side Right Hand (grey) |
|
$ 161.69 | |||||
| 17A | W10612000 | Trim, Side Right Hand (grey) |
|
$ 248.70 | |||||
| 1A | W10712801 | Energy Guide |
|
- | |||||
| 1B | W10600683 | Tech Sheet (english) |
|
- | |||||
| 1C | W10717764 | Tech Sheet (french) |
|
- | |||||
| 1D | W10735232 | Installation Instructions |
|
- | |||||
| 31A | W11700299 | Hinge, Top Right Hand (grey) (Replaces: W10691136) |
|
Immediately | $ 507.95 | ||||
| 38A | W10167341 | Cover, Switch (right Hand) |
|
$ 77.09 | |||||
| 3A | W11042559 | Bracket, Grille Right Hand (grey) (Replaces: W10714146) |
|
$ 97.28 | |||||
| 5A | W10860448 | Support, Leveler Assembly (right Hand) (Replaces: W10138423) |
|
Immediately | $ 383.00 |
