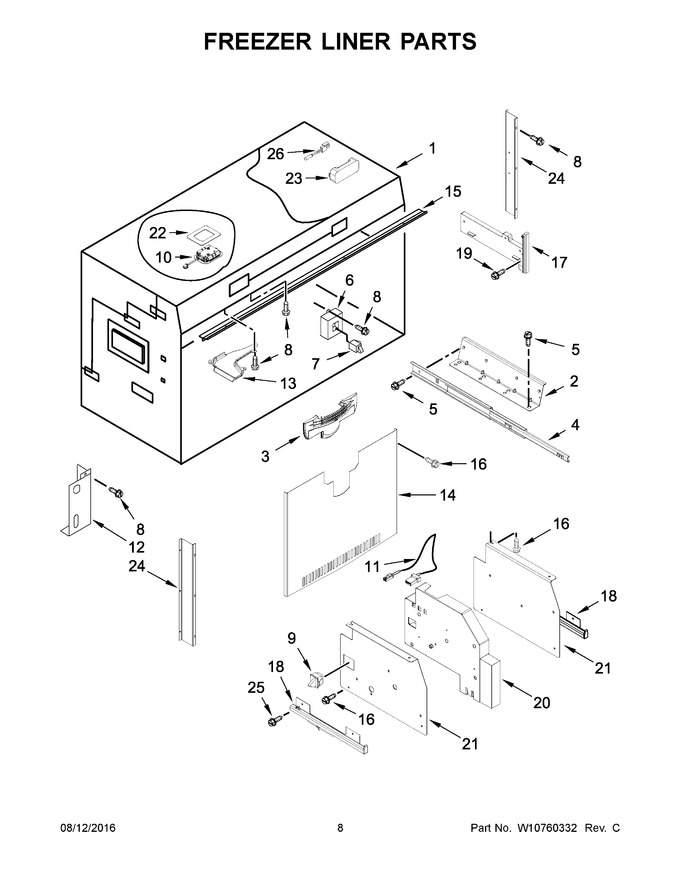

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner, Freezer (not Servicable) |
|
- | |||||
| 2 | W10744328 | Support, Drawer Slide (grey) |
|
- | |||||
| 3 | W10541687 | Grille, Freezer Air (grey) |
|
$ 80.68 | |||||
| 4 | W11650036 | Slide, Freezer Basket (Replaces: W10423551) |
|
Immediately | $ 363.66 | ||||
| 5 | W10061370 | Screw |
|
$ 8.19 | |||||
| 6 | W10606833 | Cover, Light Switch (grey) |
|
- | |||||
| 7 | W11670534 | Switch, Light (Replaces: W10565415) |
|
Immediately | $ 23.36 | ||||
| 8 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 9 | W11289496 | Switch, Light (Replaces: W10565413) |
|
Immediately | $ 38.71 | ||||
| 10 | W11683242 | Assembly, Led Module (Replaces: W10607479) |
|
Immediately | $ 333.96 | ||||
| 11 | W10568445 | Assembly, Ice Bucket Switch Wire |
|
$ 74.78 | |||||
| 12 | 2306187 | Cover, Wiring (icemaker) |
|
- | |||||
| 13 | W10578092 | Duct, Air Flow (icemaker) |
|
- | |||||
| 14 | W10538104 | Cover, Evaporator (grey) |
|
- | |||||
| 15 | W10710401 | Assembly, Air Deflector |
|
$ 148.53 | |||||
| 16 | WPW10001160 | Screw (stainless) (Replaces: W10001160) |
|
$ 10.33 | |||||
| 17 | W10664384 | Spacer, Drawer Left Hand (grey) |
|
- | |||||
| 18 | 2306117 | Slide, Freezer Bin (left Hand) |
|
$ 278.67 | |||||
| 19 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.92 | |||||
| 20 | W10600628 | Divider, Freezer (grey) |
|
- | |||||
| 21 | W10600630 | Support, Slide (left Hand) |
|
$ 149.71 | |||||
| 22 | W10672548 | Shim, Led |
|
$ 21.11 | |||||
| 23 | W10609678 | Cover, Thermistor |
|
$ 39.19 | |||||
| 24 | W10532983 | Assembly, Evaporator Cover Rail |
|
$ 113.23 | |||||
| 25 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.92 | |||||
| 26 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 17A | W10664382 | Spacer, Drawer Right Hand (grey) |
|
- | |||||
| 18A | 2306116 | Slide, Freezer Bin (right Hand) |
|
$ 308.95 | |||||
| 21A | W10600626 | Support, Slide (right Hand) |
|
$ 104.69 |
