SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

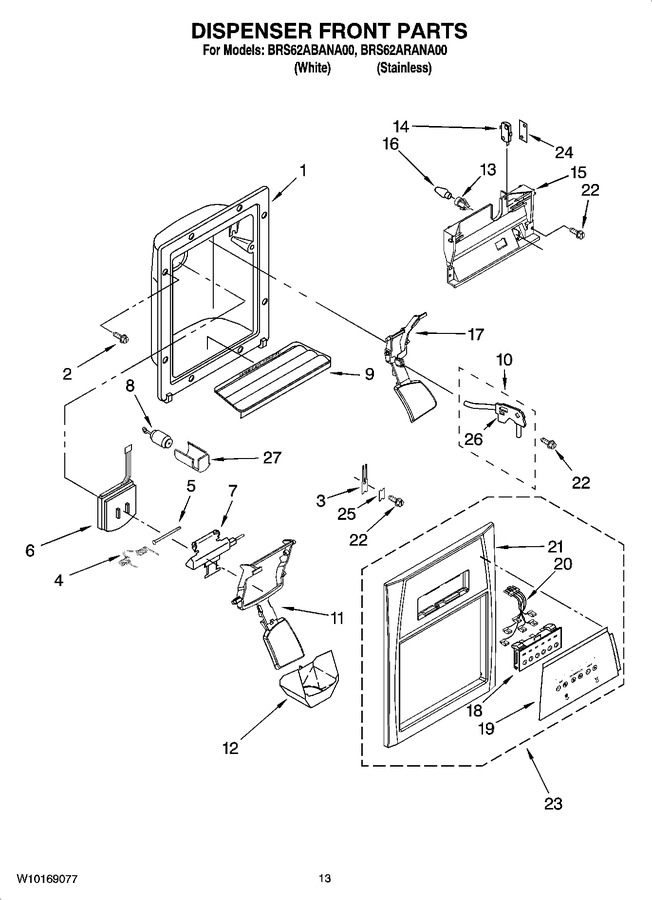

08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11245710		Screw   (Replaces: W10029710)			Immediately	$ 14.05
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.69
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	W10171992		Grille, Overflow (apollo Grey)   (Replaces: 2206671AP)				$ 88.69
9	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 68.73
10	2318280		Water Fitting Assembly (includes Water Tube)		Appelez-nous	-
11	2255431AP		Lever, Ice Dispenser (apollo Grey)				$ 49.57
11	WP2255431W		Lever, Ice Dispenser (white)   (Replaces: 2255431W)				$ 102.09
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	2180200		Lamp Holder				$ 98.66
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 27.34
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.39
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
17	WP2255432AP		Lever, Water Dispenser (apollo Grey)   (Replaces: 2255432AP)				$ 116.22
17	WP2255432W		Lever, Water Dispenser (white)   (Replaces: 2255432W)				$ 100.95
20	2325305		Wire Assembly		Appelez-nous	-
22	W10029740		Screw		Appelez-nous	-
23	W10139514		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
23	WPW10139515		Front Cover Assembly (includes Items 18, 19, 20 & 21) (apollo Grey)   (Replaces: W10139515)				$ 306.27
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
26	WP2304673		Bracket, Dispenser   (Replaces: 2318279)				$ 15.60
27	2252127		Sleeve, Delay Mechanism				$ 22.00

    View Diagram in Separate Window       Print Part List
