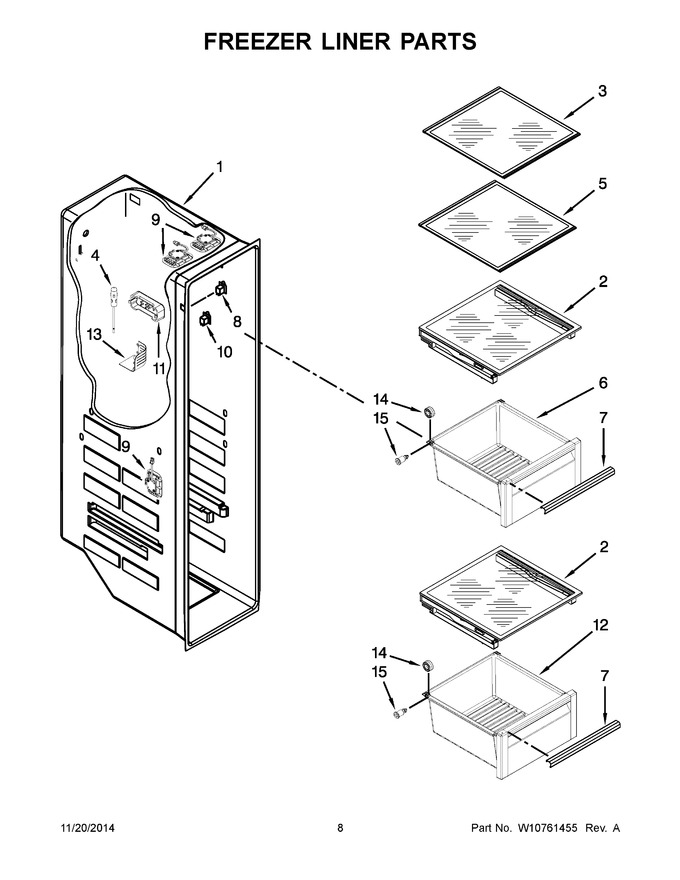

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10290890		Cover Assembly				$ 269.33
3	WPW10327550		Shelf, Glass Upper   (Replaces: W10327550)				$ 237.45
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	WPW10327551		Shelf, Glass Lower   (Replaces: W10327551)				$ 233.59
6	W10542040		Pan, Freezer Upper				$ 245.34
7	W10542019		Trim, Handle		Appelez-nous	-
8	W11396033		Switch, Rocker Arm   (Replaces: W10656771)			Immediately	$ 37.30
9	W11683241		Assembly, Led Light Module   (Replaces: W10637153)			Immediately	$ 271.97
10	W11123943		Switch, Rocker Arm   (Replaces: W10656772)				$ 36.66
11	WPW10425252		Cover, Thermistor   (Replaces: W10425252)			Immediately	$ 88.38
12	W10542039		Pan, Freezer Lower		Appelez-nous	-
13	W10260382		Cover, Light				$ 80.58
14	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
15	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54

    View Diagram in Separate Window       Print Part List
