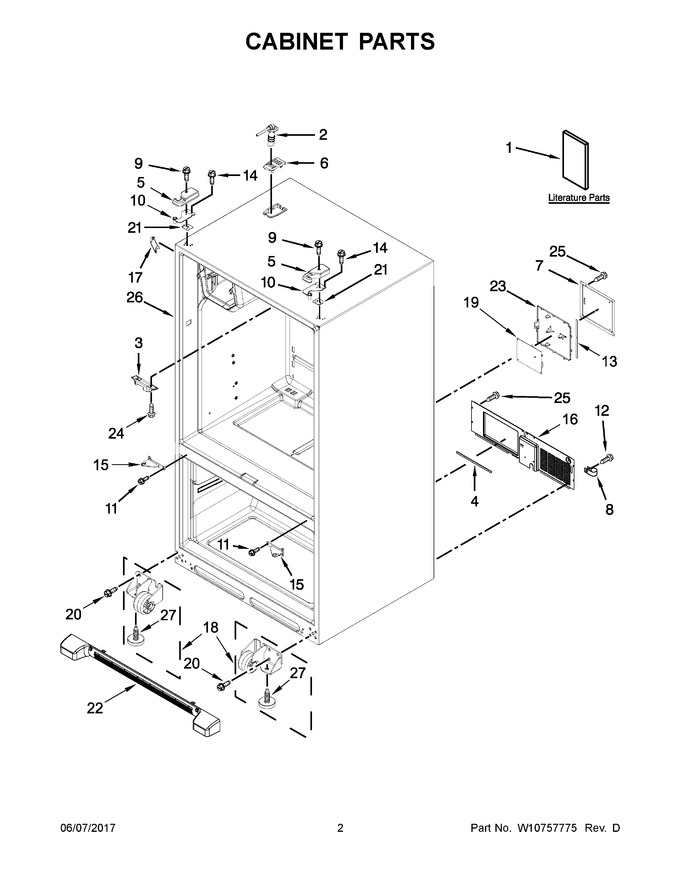

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10475392 | Tech Sheet |
|
- | |||||
| 2 | W11551552 | Tube, Water (Replaces: 12961402) |
|
Immediately | $ 20.19 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | WPW10337634 | Cover, Top Hinge Left Hand (white) (Replaces: W10337634) |
|
Immediately | $ 23.54 | ||||
| 6 | 12981401W | Cover, Fill Tube (white) |
|
$ 13.25 | |||||
| 7 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | 12957801 | Gasket, Control Box |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918115 | Hinge, Center Left Hand (white) (Replaces: W10740148) |
|
$ 22.89 | |||||
| 16 | W10211849 | Cover, Machine Compartment Back |
|
$ 196.67 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 18 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 19 | WPW10312695 | Board, Hv Control (Replaces: W10312695) |
|
Immediately | $ 246.38 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 22 | WPW10534161 | Grille, Toe (white) (Replaces: W10534161) |
|
$ 147.09 | |||||
| 23 | W10296536 | Lid, Hv Control |
|
$ 99.36 | |||||
| 24 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 26 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 27 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 10A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 15A | W10918166 | Hinge, Center Left Hand (black) (Replaces: W10740149) |
|
$ 78.31 | |||||
| 15B | W11747628 | Hinge, Center Left Hand (grey) (Replaces: W10740150) |
|
Immediately | $ 64.18 | ||||
| 15C | W10918117 | Hinge, Center Right Hand (white) (Replaces: W10740144) |
|
$ 23.79 | |||||
| 15D | W10918168 | Hinge, Center Right Hand (black) (Replaces: W10740145) |
|
Immediately | $ 78.07 | ||||
| 15E | W11747628 | Hinge, Center Right Hand (grey) (Replaces: W10740146) |
|
Immediately | $ 64.18 | ||||
| 17A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 17B | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W10731561 | Use And Care Guide |
|
- | |||||
| 1B | W10731563 | Energy Guide |
|
- | |||||
| 21A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 22A | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 148.16 | |||||
| 22B | WPW10534160 | Grille, Toe (grey) (Replaces: W10534160) |
|
Immediately | $ 72.60 | ||||
| 5A | W10337647 | Cover, Top Hinge Left Hand (black) |
|
Immediately | $ 23.33 | ||||
| 5B | WPW10337648 | Cover, Top Hinge Left Hand (grey) (Replaces: W10337648) |
|
$ 23.12 | |||||
| 5C | 67005958 | Cover, Top Hinge Right Hand (white) (Replaces: 12962302W) |
|
$ 21.57 | |||||
| 5D | WP67005956 | Cover, Top Hinge Right Hand (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 5E | WPW10191117 | Cover, Top Hinge Right Hand (grey) (Replaces: 12962302AP) |
|
$ 23.05 | |||||
| 6A | 12981401B | Cover, Fill Tube (black) |
|
$ 13.25 | |||||
| 6B | W10191141 | Cover, Fill Tube (grey) (Replaces: 12981401AP) |
|
$ 15.06 |
