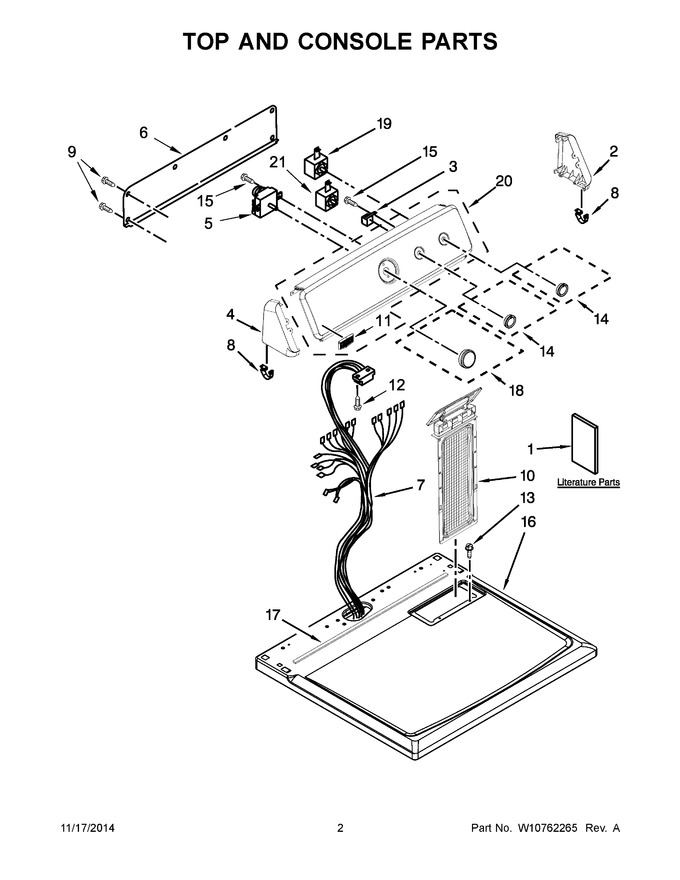

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562354		Use And Care Guide		Appelez-nous	-
2	WPW10193821		Endcap Assembly, Right Hand (white)   (Replaces: W10193821)				$ 74.72
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10193824		Endcap Assembly, Left Hand (white)   (Replaces: W10193824)				$ 74.39
5	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)				$ 346.09
6	W10103406		Panel, Rear (console)				$ 135.31
7	W10565801		Wiring Harness, Main		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
12	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W10316616		Seal, Foam				$ 27.79
18	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
19	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
20	W11027432		Console (white)   (Replaces: W10692611)		Appelez-nous	-
21	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
1A	W10562360		Installation Instructions		Appelez-nous	-
1B	W10185986		Wiring Diagram		Appelez-nous	-
