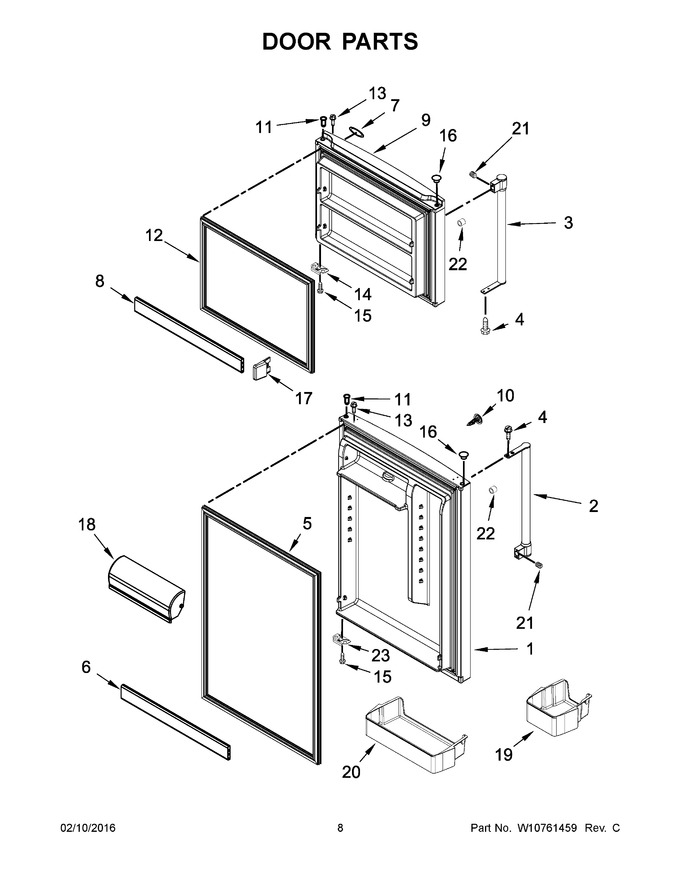

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10636232 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10636232) |
|
$ 751.90 | |||||
| 2 | W10647954 | Handle, Door (neptune Frost) |
|
$ 298.85 | |||||
| 3 | W10647957 | Handle, Door (neptune Frost) |
|
$ 308.48 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | W10838574 | Door Gasket, Magnetic (white) (Replaces: W10638676) |
|
Immediately | $ 88.27 | ||||
| 6 | W10592149 | Trim, Door Rc |
|
$ 95.13 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 8 | W10592151 | Trim, Door Fc |
|
$ 93.32 | |||||
| 9 | LW10636404 | Freezer Door (includes Illustration 12) (white) (Replaces: W10636404) |
|
$ 807.68 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 8.38 | |||||
| 11 | W11759045 | Thimble-top (white) (Replaces: W10492018) |
|
Immediately | $ 12.34 | ||||
| 12 | W10861499 | Door Gasket, Magnetic (white) (Replaces: W10638675) |
|
Immediately | $ 98.40 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 16 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 55.68 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 19 | WPW10308867 | Bin Short (Replaces: W10308867) |
|
$ 73.84 | |||||
| 20 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 | ||||
| 21 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 22 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 23 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 68.81 | |||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 19.54 | |||||
| 10B | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 19.54 | ||||
| 11A | W11189115 | Thimble-top (black) (Replaces: W10334042) |
|
$ 12.71 | |||||
| 11B | W11676573 | Thimble-top (grey) (Replaces: W10492022) |
|
$ 14.81 | |||||
| 12A | W11229610 | Door Gasket, Magnetic (black) (Replaces: W10667843) |
|
Immediately | $ 300.69 | ||||
| 12B | W11036546 | Door Gasket, Magnetic (grey) (Replaces: W10638686) |
|
Immediately | $ 174.33 | ||||
| 16A | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 16B | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 1A | LW10672970 | Refrigerator Door (includes Illustration 5) (black) (Replaces: W10672970) |
|
$ 724.79 | |||||
| 1B | LW10672972 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10672972) |
|
$ 842.94 | |||||
| 5A | W11240749 | Door Gasket, Magnetic (black) (Replaces: W10678768) |
|
Immediately | $ 300.69 | ||||
| 5B | W11028007 | Door Gasket, Magnetic (grey) (Replaces: W10638687) |
|
$ 309.74 | |||||
| 9A | LW10672964 | Freezer Door (includes Illustration 12) (black) (Replaces: W10672964) |
|
$ 723.29 | |||||
| 9B | LW10672966 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10672966) |
|
$ 961.97 |
