01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

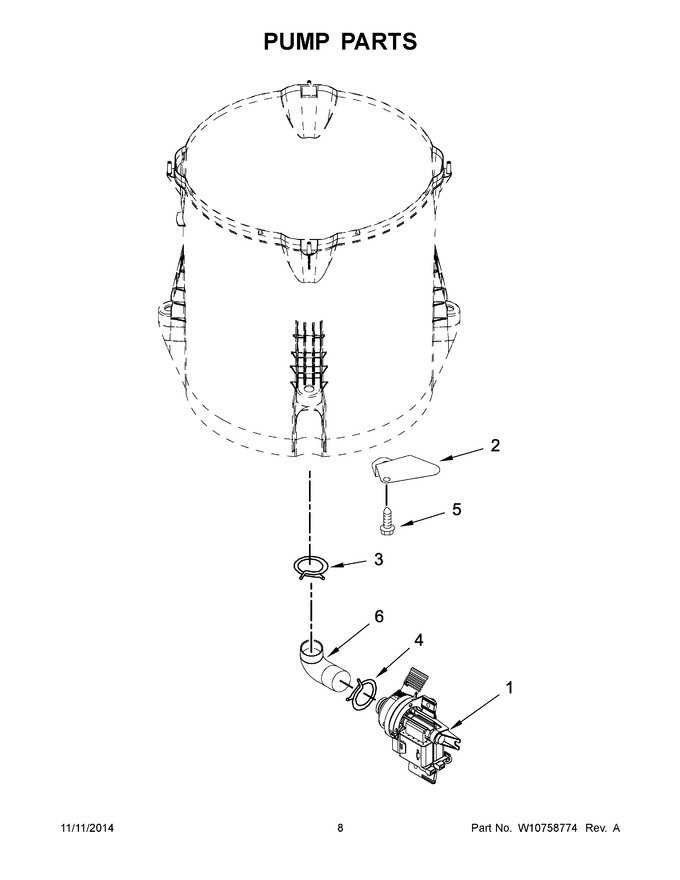

| 1 | WPW10581874 | Pump Assembly, Drain (Replaces: W10581874) |
|
Immediately | $ 117.60 | ||||
| 2 | W10637932 | Shield, Heat |
|
$ 28.48 | |||||
| 3 | WP285655 | Clamp, Hose (Replaces: W10142630) |
|
Immediately | $ 8.39 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 5 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 6 | W10802689 | Hose, Tub To Pump (Replaces: W10622690) |
|
$ 32.99 |
