SELECT A DIAGRAM

01 - Cover Sheet

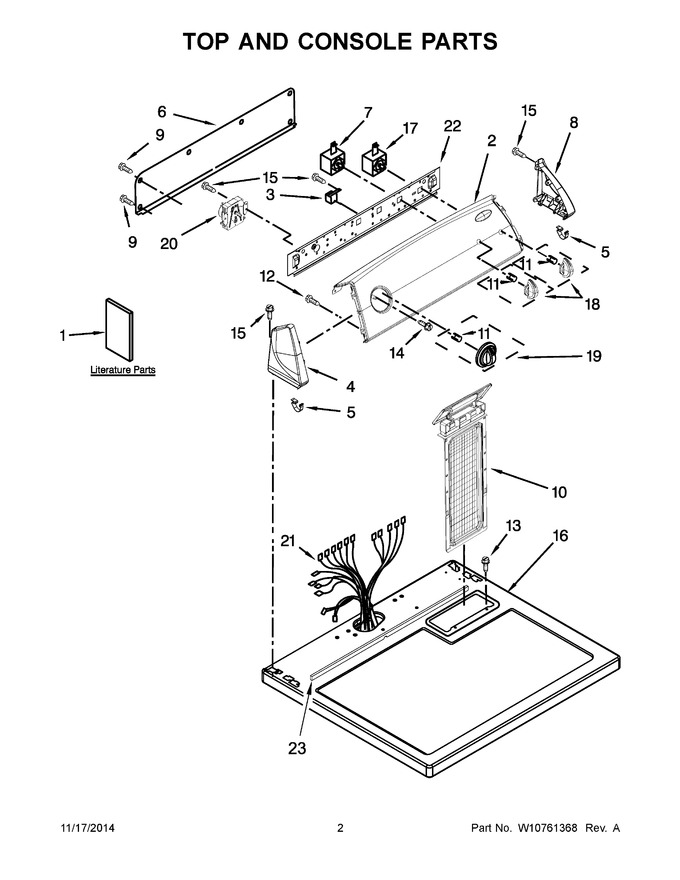

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514185		Installation Instructions		Appelez-nous	-
2	WPW10295262		Assembly, Control Panel & Bracket   (Replaces: W10295262)				$ 267.51
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10103406		Panel, Rear (console)				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
18	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
19	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
20	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)				$ 346.09
21	W10740201		Harness, Wiring		Appelez-nous	-
22	8566052		Bracket, Control		Appelez-nous	-
23	W10316616		Seal, Foam				$ 27.79
1A	W10096986		Guide, Use And Care		Appelez-nous	-
1B	W10185986		Wiring Diagram		Appelez-nous	-
