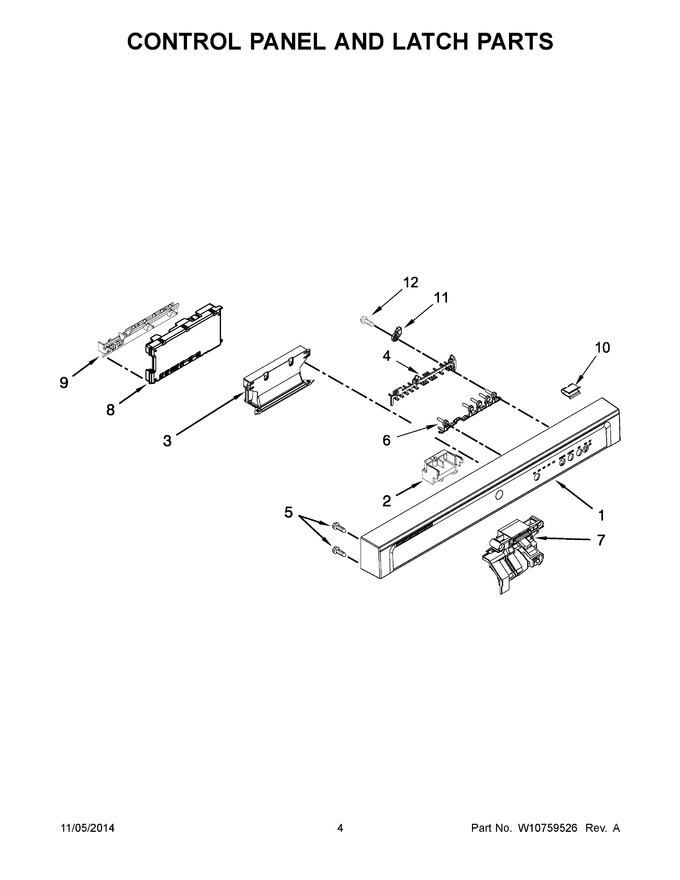

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10733633 | Console Assembly (includes Insert) (Replaces: W10671829) |
|
$ 337.70 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 28.27 | |||||
| 3 | W11568629 | Handle Pocket (black) (Replaces: W10629511) |
|
Immediately | $ 22.37 | ||||
| 4 | W10839423 | Light Pipe (Replaces: W10629497) |
|
Immediately | $ 24.43 | ||||
| 5 | W11232015 | Screw (Replaces: W10648588) |
|
Immediately | $ 13.26 | ||||
| 6 | W10849355 | Button Tree (Replaces: W10629499) |
|
$ 23.74 | |||||
| 7 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10574864) |
|
Immediately | $ 30.76 | ||||
| 8 | W10906419 | Control, Electronic (Replaces: W10588604) |
|
$ 283.45 | |||||
| 9 | WPW10372484 | Brace, Connector (Replaces: W10372484) |
|
$ 21.03 | |||||
| 10 | W10815836 | Clip, Panel (Replaces: W10485367) |
|
$ 7.43 | |||||
| 11 | W10629551 | Tab, Control |
|
$ 19.67 | |||||
| 12 | W11700520 | Screw (Replaces: 3400061) |
|
$ 12.85 |
