01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts

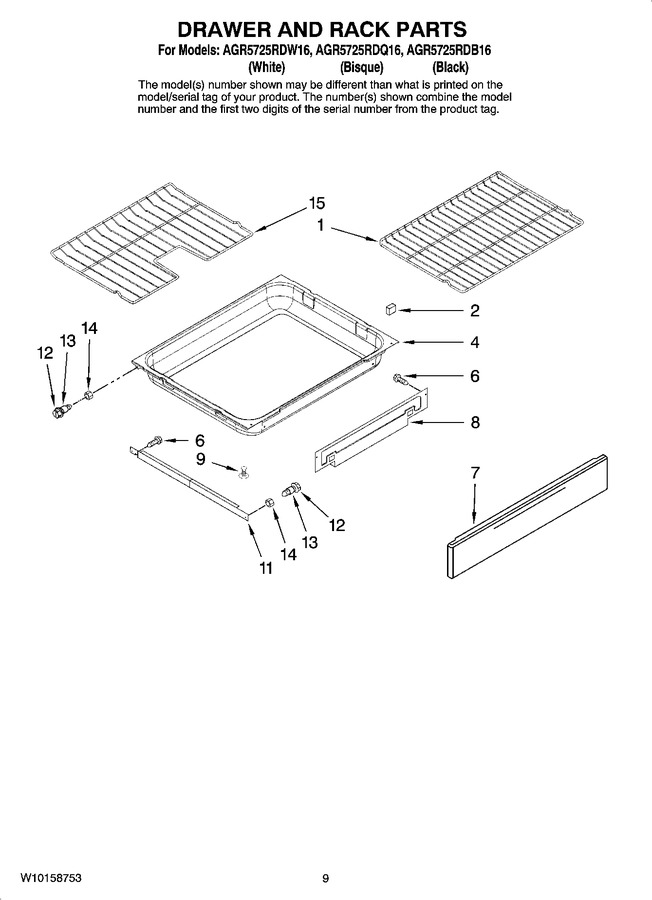

06 - Drawer And Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74008763		Rack,oven Standard   (Replaces: 74008763)				$ 224.16
2	WP74005546		Spacer, Bumper   (Replaces: 74005546)				$ 11.06
4	WP3405F037-80		Drawer   (Replaces: 74008877)				$ 355.81
6	W11233072		Screw   (Replaces: 74001530)			Immediately	$ 14.72
7	W10159223		Panel, Drawer Frnt (white)		Appelez-nous	-
7	W10159225		Panel, Drawer Frnt (bisque)		Appelez-nous	-
7	W10159224		Panel, Drawer Frnt (black)		Appelez-nous	-
8	74009519		Panel, Inner		Appelez-nous	-
9	74008688		Drawer, Stop				$ 5.02
11	74008687		Rail, Drawer		Appelez-nous	-
12	74005231		Shaft, Storage Drawer Roller				$ 9.23
13	WP74004078		Roller, Drawer   (Replaces: 74004078)			Immediately	$ 12.48
14	WP488130		Nut   (Replaces: 7103P082-60)				$ 7.32
15	74009045		Rack, Oven Easy		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	799340		Paint, Bulk (1 Qt.) (black (uncut)		Appelez-nous	-
NI	YCH527		Element- B		Appelez-nous	-
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 8.47
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray(12 Oz.) (black)   (Replaces: 350939)				$ 59.89
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
NI	4392900		Paint, Bulk (1 Qt.) (biscuit (uncut)		Appelez-nous	-
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	LW10149617		Dor-fip St		Appelez-nous	-
NI	W10158772		Harness, Gas		Appelez-nous	-
NI	8019P026-60		Clip, Harness   (Replaces: 74006784)		Appelez-nous	-
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07
NI	4392901		Paint, Pressurized Spray (12 Oz) (biscuit)		Appelez-nous	-
NI	8019P013-60		Clip, Wire   (Replaces: 74006811)				$ 15.70
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.78
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
NI	242828		Wire, Black 12 Ga. 150 C		Appelez-nous	-
NI	242821		Wire, Blue 14 Ga. 150 C		Appelez-nous	-
NI	242822		Wire, Brown 14 Ga. 150 C		Appelez-nous	-
NI	242830		Wire, Brown 14 Ga. 200 C		Appelez-nous	-
NI	242823		Wire, Green 14 Ga. 150 C		Appelez-nous	-
NI	242824		Wire, Orange 14 Ga. 150 C		Appelez-nous	-
NI	242825		Wire, Red 14 Ga. 150 C		Appelez-nous	-
NI	242831		Wire, Red 14 Ga. 200 C				$ 342.23
NI	55356		Gasket		Appelez-nous	-
