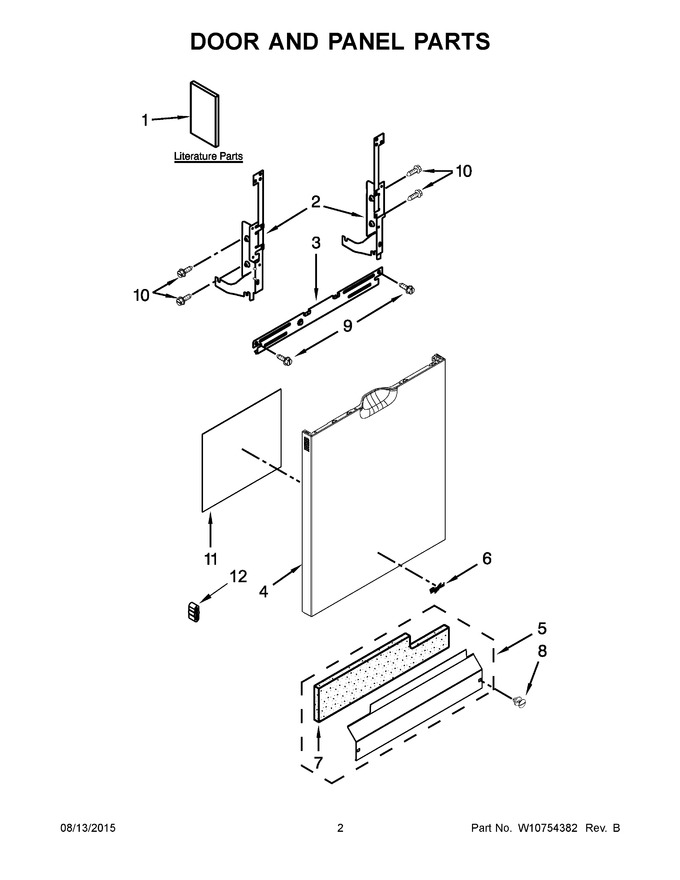

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10435040 | Installation Instructions |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left Hand) (Replaces: W10274922) |
|
Immediately | $ 71.77 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10195120) |
|
Immediately | $ 32.88 | ||||
| 4 | W10802703 | Panel, Front (includes Nameplate) (black) (Replaces: W10629470) |
|
$ 406.15 | |||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10799402) |
|
Immediately | $ 195.64 | ||||
| 6 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 7 | W10831329 | Insulation, Toe Panel (Replaces: W10519755) |
|
Immediately | $ 43.30 | ||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10620222) |
|
Immediately | $ 65.25 | ||||
| 12 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 | ||||
| 1A | W10656410 | Energy Guide |
|
- | |||||
| 1B | W10717213 | Use & Care Guide |
|
- | |||||
| 1C | W10590887 | Tech Sheet, English |
|
- | |||||
| 1D | W10590888 | Tech Sheet, French |
|
- | |||||
| 2A | W11613572 | Arm, Hinge (right Hand) (Replaces: W10274921) |
|
Immediately | $ 83.93 | ||||
| 4A | W10846351 | Panel, Front (includes Nameplate) (white) (Replaces: W10629471) |
|
$ 342.21 | |||||
| 4B | WPW10629473 | Panel, Front (includes Nameplate) (stainless) (Replaces: W10629473) |
|
$ 388.41 | |||||
| 5A | W10827632 | Access Panel (white) (Replaces: W10799403) |
|
Immediately | $ 163.70 | ||||
| 6A | W11178521 | Nameplate (white) (Replaces: W10387117) |
|
Immediately | $ 63.13 | ||||
| 8A | WPW10503549 | Fastener (white) (Replaces: W10503549) |
|
Immediately | $ 7.77 |
