Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10161215 Dishrack, Lower   (Replaces: 8539225) Special Order $ 198.12

2 WP8268645 Wheel & Transport Assembly   (Replaces: 8268645) In-Stock Immediately $ 62.31

3 W11158802 Silverware Basket Assembly   (Replaces: W10629541) In-Stock Immediately $ 99.66

4 W10629533 Lid, Silverware Basket (side) Special Order $ 77.12

5 W10629537 Lid, Silverware Basket (center) Appelez-nous -
6 WPW10671904 Clip, Silverware Basket   (Replaces: W10671904) In-Stock Immediately $ 8.56


    View Diagram in Separate Window     Print Icon   Print Part List

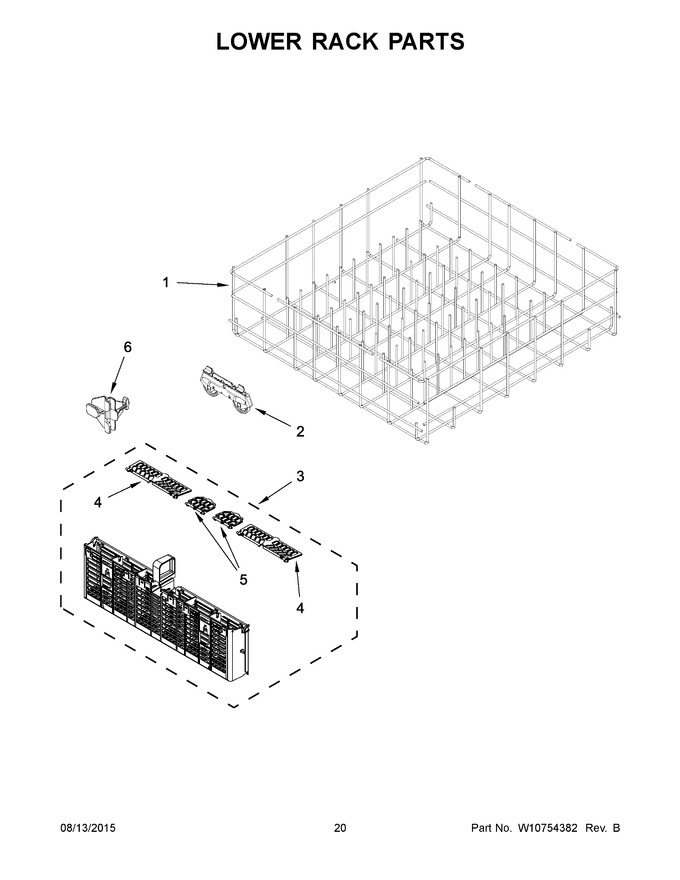

Diagram for WDF520PADW3
