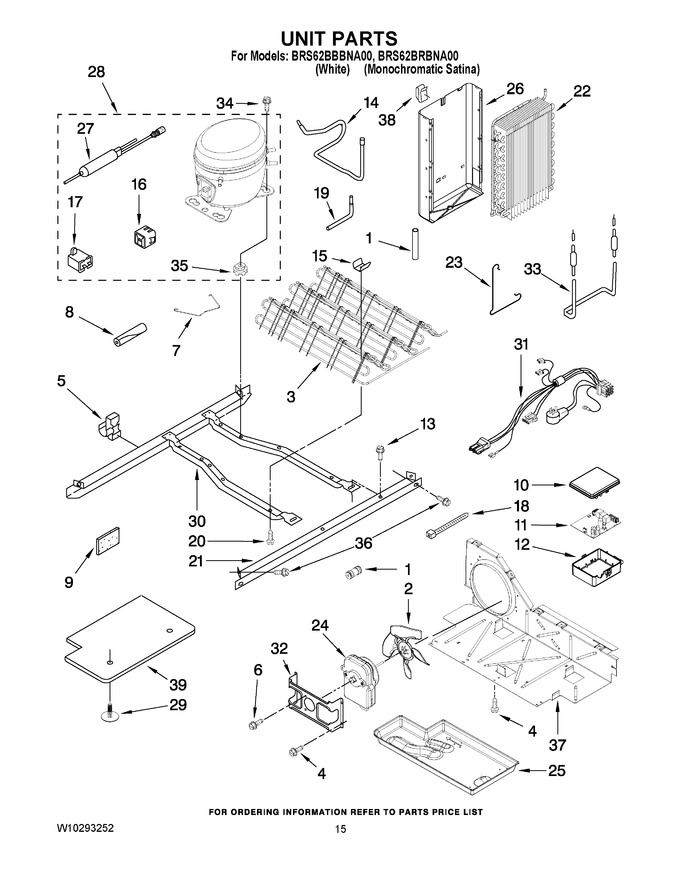

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4373559		Connector   (Replaces: 2209709)				$ 73.10
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 22.67
3	2324712		Condenser Assembly (also Order No.1)   (Replaces: W10222348)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10812039		Clip, Wire   (Replaces: 2326941)				$ 10.01
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	2302129		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	W11553819		Insulation, Sound   (Replaces: 2196092)			Immediately	$ 13.29
10	W10132975		Box Cover		Appelez-nous	-
11	2321818		Elec. Control		Appelez-nous	-
12	W10132976		Control Box		Appelez-nous	-
13	WP489427		Screw   (Replaces: 489427)				$ 7.06
14	2205764		Tube Suction				$ 80.26
15	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 17.44
16	WP2312007		Start-device Combination (start Relay And Overload) (service)   (Replaces: 2312007)				$ 170.72
17	2321245		Capacitor (service)   (Replaces: 2254217)		Appelez-nous	-
17	2321245		Capacitor (production)		Appelez-nous	-
18	WPW10339879		Strap   (Replaces: 2263990)				$ 7.47
19	2325479		Process Tube		Appelez-nous	-
20	W11544659		Screw   (Replaces: 8281232)				$ 12.92
21	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 112.40
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 321.16
23	2161324		Clamp		Appelez-nous	-
24	WP2321271		Fan, Motor   (Replaces: 2321271)				$ 292.92
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
26	WPW10194474		Heat Shield   (Replaces: W10194474)				$ 112.96
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 27.70
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 27.70
28	W10183407		Compressor (includes Items 16, 17, 27, & 35) (also Order 876765 Tube Kit)   (Replaces: W10120455)				$ 392.05
29	489396		Clip				$ 10.13
30	2304903		Unit Mounting Frame				$ 220.21
31	W10270237		Unit, Harness (includes Power Cord)		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 11.64
33	WPW10123612		Heater, Defrost   (Replaces: W10123612)				$ 78.98
34	876811		Screw   (Replaces: 489373)				$ 7.01
35	876811		Grommet (4) (service)   (Replaces: 1100826)				$ 7.01
36	489340		Screw (5)		Appelez-nous	-
37	W10163483		Air Baffle		Appelez-nous	-
38	2155547		Clip, Heat Shield		Appelez-nous	-
39	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 489.43
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access(3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
