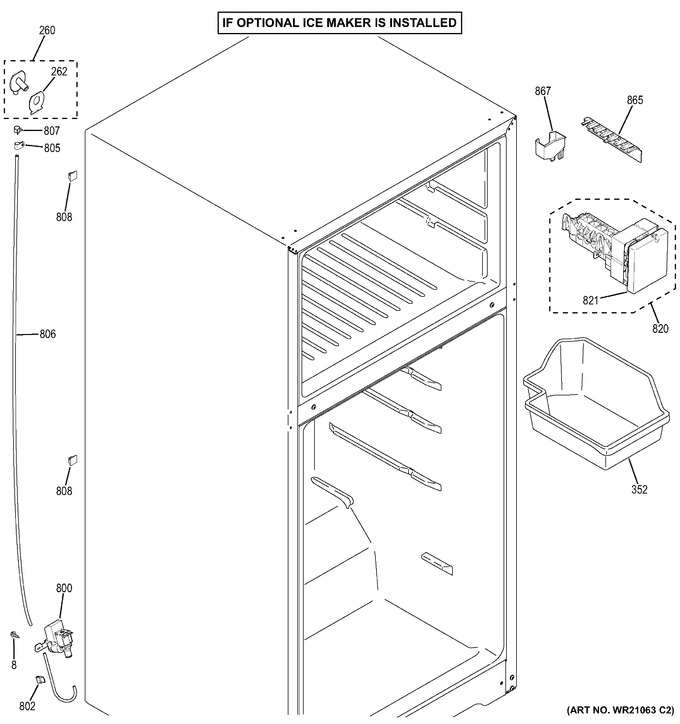

SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
260	WR2X9224		Wr2x9161		Appelez-nous	-
262	WR2X9223		Gasket Donut		Appelez-nous	-
352	WR30X21245		Bucket Ice		Appelez-nous	-
800	WR57X21246		Valve And Tube Asm		Appelez-nous	-
802	WR01X10182		Clip U		Appelez-nous	-
805	WR2X3736		Str Relief		Appelez-nous	-
806	WR17X11492		Tube Plastic		Appelez-nous	-
807	WR02X11437		Clamp		Appelez-nous	-
808	WR2X4039		Adhesive Clip		Appelez-nous	-
820	IM6D		Kit Rplcmt Wr30x10093   (Replaces: WR30X10093)			Immediately	$ 274.39
821	WR29X10080		Cover		Appelez-nous	-
865	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10046		Cup Fill Im		Appelez-nous	-
	WG03F00141		Compresseur Kit			Immediately	$ 797.08
	WG03F00975		Defrost Timer   (Replaces: WG03F01435)			Immediately	$ 81.73
	WG03F01639		Ventilateur			Immediately	$ 23.01
	WG03A02403		Evaporateur Et Tube Asm   (Replaces: WG03F04662)				$ 282.41
	WG03A02980		Boitier, Controle   (Replaces: WG03F04671)				$ 113.54
	WG03F06661		Control Temp   (Replaces: WG03F05810)			Immediately	$ 108.10
	WG03F07855		Moteur Ventilateur Evaporateur   (Replaces: WG03F05834)			Immediately	$ 136.29
	WG03L06353		Ens D''helice Du Ventilateur Pour Evap				$ 16.22
	WG03L06363		Door Foam Asm Ff				$ 1,362.99
	WG03L08426		Gasket Door Ff   (Replaces: WG03L06373)			Immediately	$ 139.01
	WG03L06376		Gasket Door Fz				$ 104.17
