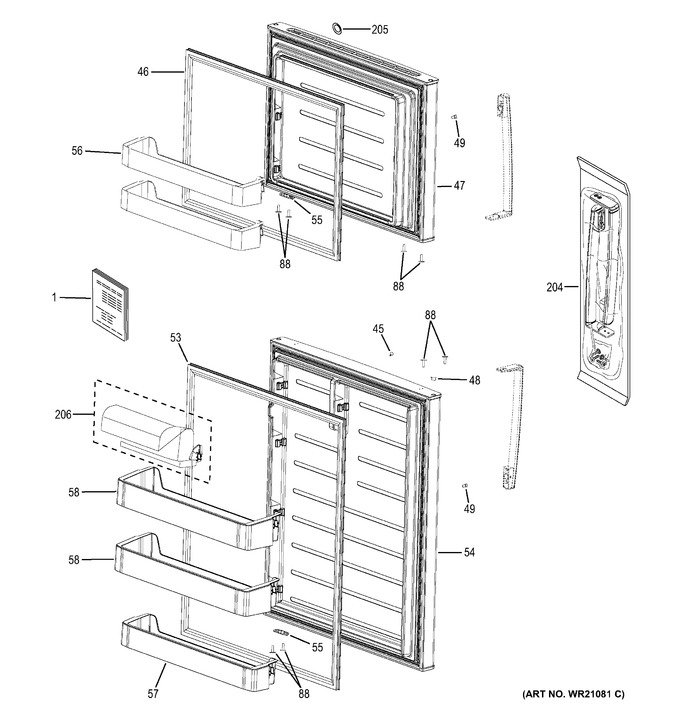

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Shelves & Drawers


5 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60728		Pm Quick Use & Care		Appelez-nous	-
1	31-51893		Pm Mini Manual Wiring		Appelez-nous	-
1	39-49051		Pm Attention Installer		Appelez-nous	-
1	49-60726		Pm Guide Owners		Appelez-nous	-
45	WR01X22757		Plug Door Rvsbl Ww		Appelez-nous	-
46	WR13X22762		Gasket Door Fz Ww		Appelez-nous	-
47	WG03A03996		Door Foam Asm Fz Ww   (Replaces: WR78X22761)				$ 642.23
48	WR01X22752		Plug Button Thimble Ww		Appelez-nous	-
49	WR49X22751		Fastener Door Handle		Appelez-nous	-
53	WR13X22760		Gasket Door Ff Ww		Appelez-nous	-
54	WR78X22759		Door Foam Asm Ff Ww		Appelez-nous	-
55	WR01X22754		Stop Door Ww		Appelez-nous	-
56	WR71X22780		Shelf Fixed Fz		Appelez-nous	-
57	WR71X22755		Shelf Fixed Ff		Appelez-nous	-
58	WR71X22756		Shelf Fixed Bottom Ff		Appelez-nous	-
88	WR01X22758		Screw		Appelez-nous	-
204	WR12X22763		Pk Handle Asm Ww		Appelez-nous	-
205	WR04X10222		Badge Asm Ge		Appelez-nous	-
206	WR01X22753		Dairy Bin Asm		Appelez-nous	-
