SELECT A DIAGRAM
1 - Doors & Shelves
2 - Cabinet
3 - Machine Compartment
New Model Search:

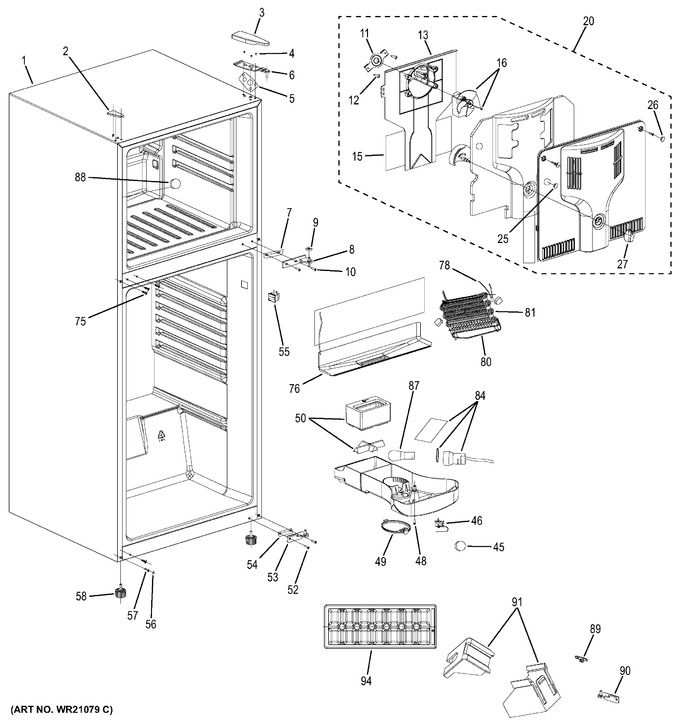

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 152B2658P001 | Pm Owners & Install |
|
- | |||||
| 1 | 152B2659P001 | Pm Mini Manual |
|
- | |||||
| 2 | WR13X20418 | Top Hinge Rvsbl Cover Bb |
|
- | |||||
| 3 | WR13X20423 | Top Hinge Cover |
|
- | |||||
| 5 | WR02X20337 | Top Hinge Gasket |
|
- | |||||
| 6 | WR13X20338 | Top Hinge |
|
- | |||||
| 7 | WR02X20339 | Center Hinge Gasket |
|
- | |||||
| 8 | WR13X20414 | Center Hinge |
|
- | |||||
| 9 | WR01X20341 | Spacer Door Fz |
|
- | |||||
| 10 | WR01X20342 | Screw |
|
- | |||||
| 15 | WR60X22031 | Evap Fan Replacement Kit |
|
- | |||||
| 16 | WR60X20344 | Fan Blade Rplcmnt Kit |
|
- | |||||
| 20 | WR13X22030 | Evap Cover Asm-á |
|
- | |||||
| 25 | WR02X20347 | I/m Fill Plug Button |
|
- | |||||
| 26 | WR02X20348 | Evap Cvr Screw Cvr |
|
- | |||||
| 27 | WR02X20349 | Fz Temp Control Knob |
|
- | |||||
| 45 | WR02X20363 | Knob Control Ff |
|
- | |||||
| 46 | WR09X20364 | Thermostat |
|
- | |||||
| 48 | WR01X20366 | Screw |
|
- | |||||
| 49 | WR02X20367 | Lamp Cover |
|
- | |||||
| 50 | WR01X20368 | Rear Channel Eps |
|
- | |||||
| 52 | WR01X20263 | Screw |
|
- | |||||
| 53 | WR13X20369 | Bottom Hinge |
|
- | |||||
| 54 | WR02X20370 | Bottom Hinge Gasket |
|
- | |||||
| 55 | WR23X20371 | Switch Light |
|
- | |||||
| 56 | WR02X20411 | Plug Button |
|
- | |||||
| 57 | WR01X20373 | Screw |
|
- | |||||
| 58 | WR02X20374 | Adjustable Foot |
|
- | |||||
| 75 | WR13X20258 | Plastic Rivet |
|
- | |||||
| 76 | WR17X20390 | Defrost Drain Tray |
|
- | |||||
| 78 | WR87X20391 | Temperature Fuse |
|
- | |||||
| 80 | WR09X20392 | Defrost Heater |
|
- | |||||
| 81 | WR87X20407 | Evaporator Replcmnt Kit |
|
- | |||||
| 84 | WR02X20394 | Lamp Socket |
|
- | |||||
| 87 | WR01X22041 | Led |
|
- | |||||
| 88 | WR13X20396 | I/m Junction Cvr |
|
- | |||||
| 89 | WR01X20397 | Door Stopper |
|
- | |||||
| 90 | WR13X20398 | Bottom Hinge Left |
|
- | |||||
| 91 | WR13X20070 | Water Connector Cover |
|
- | |||||
| 94 | WR30X22040 | Ice Tray-á |
|
- | |||||
| WG03F05021 | Temperature Fuse |
|
$ 75.81 | ||||||
| WG03F05007 | Thermostat |
|
$ 66.94 | ||||||
| WG03F05003 | Evap Cover Asm W/ Fan Motor |
|
$ 597.53 | ||||||
| WG03F04922 | Defrost Timer |
|
Immediately | $ 66.75 | |||||
| WG03F00777 | Defrost Timer |
|
$ 100.02 | ||||||
| WG03A02185 | Compressor Kit |
|
$ 302.57 | ||||||
| WG03L06758 | Foam Door Asm Ffwhite |
|
$ 145.01 | ||||||
| WG03L06738 | Foam Door Asm Ffblack |
|
$ 163.20 | ||||||
| WG03L06735 | Gasket Door Fz Black |
|
$ 41.81 | ||||||
| WG03F05022 | Defrost Heater |
|
$ 167.31 |
