SELECT A DIAGRAM

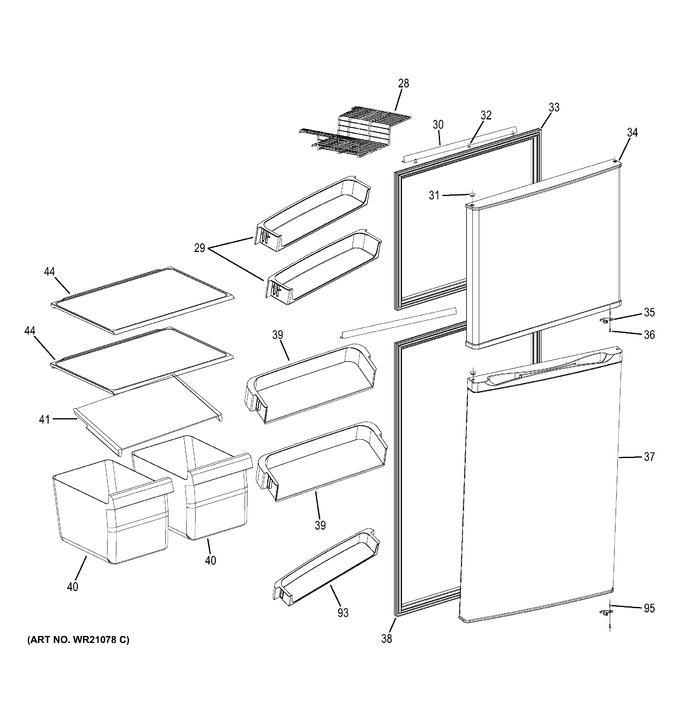

1 - Doors & Shelves


2 - Cabinet


3 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	WR71X23083		Wire Shelf Fz		Appelez-nous	-
29	WR71X22033		Fixed Shelf Fz-á		Appelez-nous	-
30	WR78X20351		Inner Door Seal		Appelez-nous	-
31	WR02X20352		Rvsbl Door Hinge Plug		Appelez-nous	-
32	WR01X20353		Plastic Rivet		Appelez-nous	-
33	WR78X20354		Gasket Door Fz		Appelez-nous	-
34	WR78X22039		Foam Door Asm Fz-áss		Appelez-nous	-
35	WR01X20356		Door Stopper		Appelez-nous	-
37	WR78X22036		Foam Door Asm Ff-áss		Appelez-nous	-
38	WR78X20358		Gasket Door Ff		Appelez-nous	-
39	WR71X22032		Fixed Shelf Ff-á		Appelez-nous	-
40	WR71X20360		Veg Pan		Appelez-nous	-
41	WR71X20361		Veg Pan Cover Asm		Appelez-nous	-
44	WR71X20409		Glass Shelf Asm		Appelez-nous	-
93	WR71X22025		Condiment Shelf-á		Appelez-nous	-
95	WR02X20400		Center Hinge Bushing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
