SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism

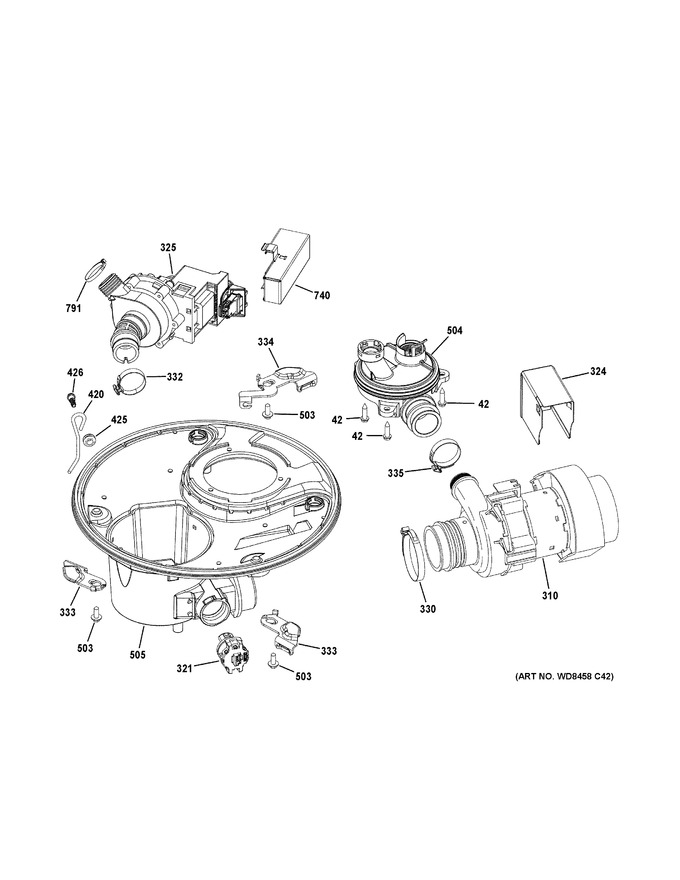

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X22736		Scr10 - 16 Ab Hxw 3/4 Ss		Appelez-nous	-
310	WD26X20551		Pump Wash Main Asm		Appelez-nous	-
321	WD21X22598		Sensor Turbidity Asm		Appelez-nous	-
324	WD01X10580		Shield Wash Pump		Appelez-nous	-
325	WD26X21697		Pump Drain Asm		Appelez-nous	-
330	WD01X20302		Clamp		Appelez-nous	-
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X22781		Scr 10-18 X 5/8		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X21754		Diverter Passive Asm		Appelez-nous	-
505	WD18X10055		Sump Manifold		Appelez-nous	-
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04A01338		Wash Pump Kit				$ 200.56
	WG04A01454		Kit Door Asm Outer				$ 246.49
	WG04F10218		Kit Svc Ui Top Logic   (Replaces: WG04A02632)				$ 199.24
	WG04A03389		Svr- Door Closing Kit				$ 174.51
	WG04A03393		Kit Main Board				$ 222.56
	WG04F04671		Hose Elbow Drain			Immediately	$ 76.30
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04A03393		Kit Main Board   (Replaces: WG04F05129)				$ 222.56
	WG04F11770		Valve Water Asm   (Replaces: WG04F05889)			Immediately	$ 76.30
	WG04F06989		Conduit Mid Tiered Asm				$ 54.09
	WG04F07026		Sump Manifold				$ 72.06
	WG03A02167		Upper Spray Arm Kit			Immediately	$ 98.12
	WG04L03829		Inner Rail Upr Rack Asm			Immediately	$ 88.15
	WG04A01079		Ct Screw Asm			Immediately	$ 33.35
	WG04A01160		Kit-spray Arm Service				$ 83.84
