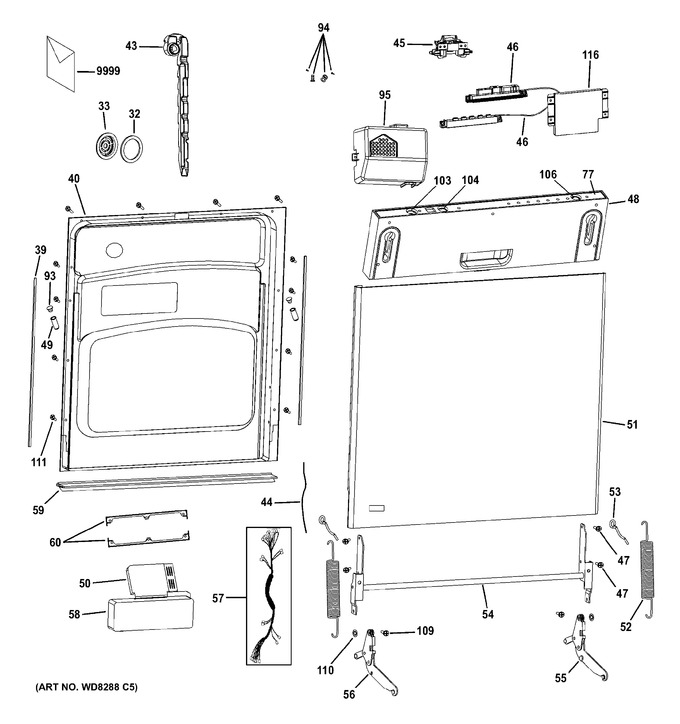

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Rack Assemblies


4 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	WD01X10320		O-ring		Appelez-nous	-
33	WD01X10309		Ring Nut W/gasket		Appelez-nous	-
39	WD08X10077		Edge Guard Bk		Appelez-nous	-
40	WD31X10104		Inner Door		Appelez-nous	-
43	WG04F07112		Duct Vent & Gasket Asm   (Replaces: WD24X10044)				$ 92.30
44	WD01X10392		Spring Cable		Appelez-nous	-
45	WD13X10046		Latch Asm		Appelez-nous	-
46	WD12X10276		User Interface Board		Appelez-nous	-
47	WD02X10119		Screw		Appelez-nous	-
48	WD34X11446		Control Panel Bb		Appelez-nous	-
49	WD02X10163		Sleeve Plastic		Appelez-nous	-
50	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
51	WD27X10238		Door Otr-custom Panel Wh		Appelez-nous	-
52	WD03X10033		Spring - Door Hinge		Appelez-nous	-
53	WD01X10250		Door Hinge Pin		Appelez-nous	-
54	WD14X10031		Hinge Asm		Appelez-nous	-
55	WD14X10020		Right Hinge Asm		Appelez-nous	-
56	WD14X10019		Left Hinge Asm		Appelez-nous	-
57	WD01X10394		Wiring Harness		Appelez-nous	-
58	WD12X10220		Detergent Dispenser		Appelez-nous	-
59	WD08X10050		Door Gasket Asm		Appelez-nous	-
60	WD01X10321		Bracket Detergent Disp		Appelez-nous	-
77	WD34X11449		Insert Control Panel		Appelez-nous	-
93	WD02X10164		Plug Button		Appelez-nous	-
94	WD35X10349		Kit-custom Panel Bracket		Appelez-nous	-
95	WD01X10390		Cover Power Board		Appelez-nous	-
103	WD21X10359		Push Button - On/off		Appelez-nous	-
104	WD21X10358		Push Button - Delay Star		Appelez-nous	-
106	WD21X10360		Push Button-cycle Select		Appelez-nous	-
109	WD01X10326		Joint Pin		Appelez-nous	-
110	WD01X10327		Spring Washer		Appelez-nous	-
111	WD02X10139		Screw-tapping St3.5 X 13		Appelez-nous	-
116	WD21X10357		Power Board Asm		Appelez-nous	-
9999	49-55046		Pm Manual Use & Care		Appelez-nous	-
9999	31-30605		Mini Manual		Appelez-nous	-
9999	31-30242		Install Instruction		Appelez-nous	-
