1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Oven Cavity Parts


6 - Door


7 - Door Lock


8 - Convection Fan

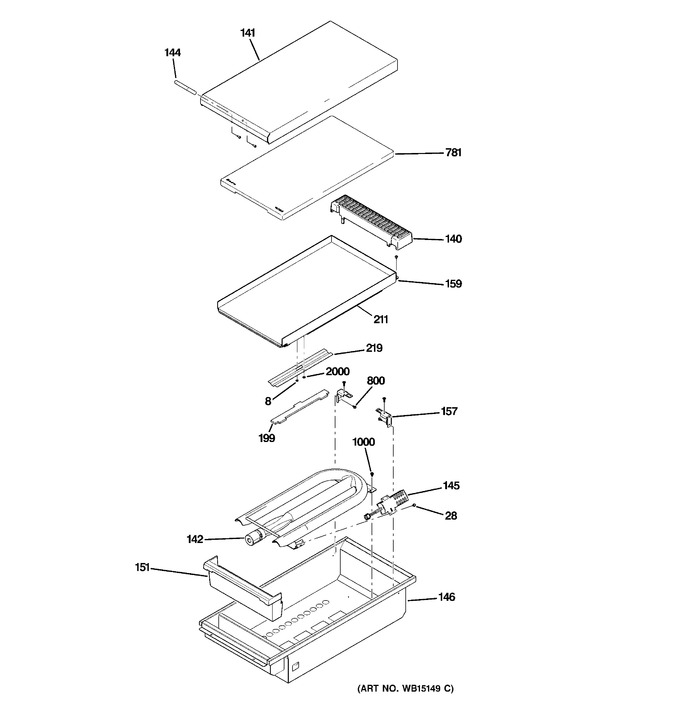

9 - Griddle Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 79.32
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
141	WB07K10431		Cover		Appelez-nous	-
142	WB28K10636		Burner Griddle		Appelez-nous	-
144	WB15K10088		Handle Cover		Appelez-nous	-
145	WS01F01204		Igniter Glowbar   (Replaces: WB13K10030)			Immediately	$ 119.48
146	WB49K10040		Griddle Body Weld		Appelez-nous	-
157	WB02K10208		Bracket Griddle		Appelez-nous	-
159	WB32K10042		Plate Griddle Weld Asm		Appelez-nous	-
199	WB49K10039		Insulation		Appelez-nous	-
211	WB02K10209		Bracket Support		Appelez-nous	-
211	WB07K10295		Plate Griddle		Appelez-nous	-
219	WB49K10015		Shield Thermostat Bulb		Appelez-nous	-
781	WS01A00006		Butcher Block (griddle)   (Replaces: WB31K10223)				$ 126.55
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1000	WB01K10086		Scr 8-18 Ab Trp 3/8 Ss		Appelez-nous	-
2000	WB01K10100		Scr 10-32 Trp 1/2		Appelez-nous	-
	WG02F00731		Ens Roue			Immediately	$ 32.88
	WG02F02831		Moteur				$ 152.39
	WS01A01105		Nut Fan Convection			Immediately	$ 8.55
