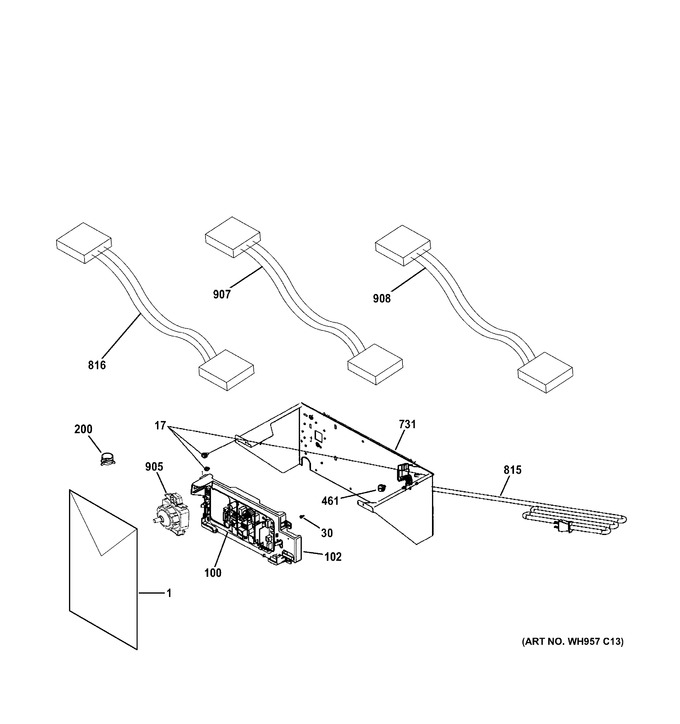

SELECT A DIAGRAM

10 - Cabinet (3)


11 - Cabinet (4)


12 - Cabinet (5)


1 - Controls


2 - Cabinet (6)


3 - Tub, Basket & Agitator


4 - Motor & Drive Assembly


5 - Front Panel


6 - Blower & Motor Assembly


7 - Door Assembly


8 - Cabinet (1)


9 - Cabinet (2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-90417		Pm Use & Care		Appelez-nous	-
1	WW01L01174		Suspension Strap 27"   (Replaces: WH01X10633)			Immediately	$ 38.81
1	31-16655-6		Installation Instruction		Appelez-nous	-
1	31-16869		Pub # Mini Manual		Appelez-nous	-
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
30	WH01M10001		Hex.screw8-32trilobular		Appelez-nous	-
100	WW02F00193		Board Control Asm   (Replaces: WH12X10586)				$ 395.50
102	WH16X20555		Support Board		Appelez-nous	-
200	WH01X10592		Clip Hose		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
731	WE19M1773		Enclosure Board		Appelez-nous	-
815	WE26M366		Power Cord And Label Asm		Appelez-nous	-
816	WE26X22035		Harness Fuse Asm		Appelez-nous	-
905	WW03F00101		Prssure Switch - Elec   (Replaces: WH12X10530)				$ 109.01
907	WW03F00104		Harness - Pressure   (Replaces: WH19X10087)				$ 13.69
908	WH19X10084		Harness Extension Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
