SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves

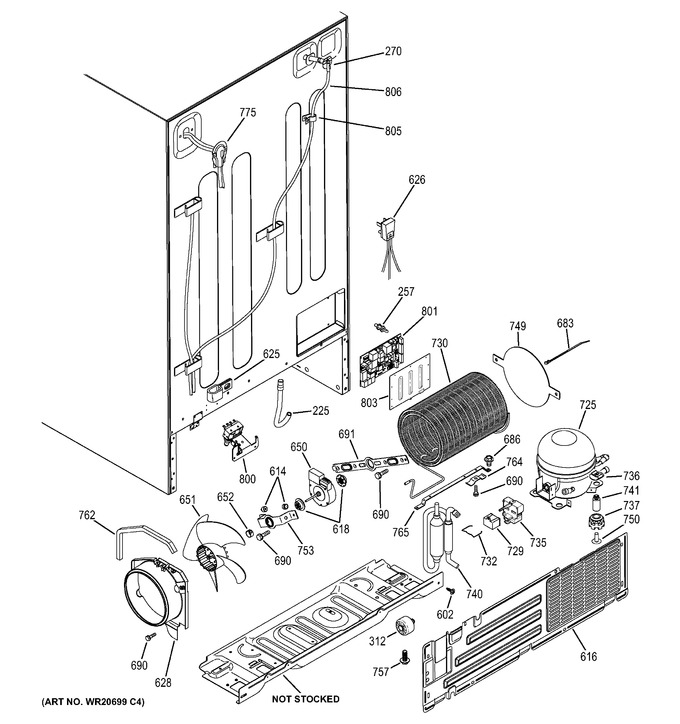

9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
225	WR01F01884		Tube Drain   (Replaces: WR02X11426)			Immediately	$ 36.53
257	WR02X10663		Stand Off		Appelez-nous	-
270	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
312	WG03L06838		Wheel Mobility   (Replaces: WR02X10695)				$ 19.06
602	WR01X10592		Scr 1/4-14 Ab Ihw 3/4 S		Appelez-nous	-
614	WR01A00163		Bumper   (Replaces: WR02X10540)			Immediately	$ 6.35
616	WR01L14249		Access Cover   (Replaces: WR82X10103)				$ 62.81
618	WR01A00579		Grommet Evap Fan   (Replaces: WR02X11331)				$ 3.97
625	WR01X10684		Clamp Cable		Appelez-nous	-
626	WR23X108		Power Cord		Appelez-nous	-
628	WR01L04391		Shroud Condenser   (Replaces: WR17X12668)				$ 26.20
650	WR60X10216		Motor Dc Cond Fan		Appelez-nous	-
651	WR01F02003		Blade Cond Fan Asm   (Replaces: WR60X10206)				$ 11.51
652	WG03F01616		Ring Compression   (Replaces: WR02X12149)				$ 3.97
683	WR02X11027		Wire Tie		Appelez-nous	-
686	WR01X10252		Screw 10-32 Tt Hxw 5/16		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WR02X10593		Bracket Cond Fan (rear)		Appelez-nous	-
725	WG03F00141		Compressor Kit Egys60   (Replaces: WR87X10224)			Immediately	$ 797.08
729	WR01F02043		Capacitor   (Replaces: WR62X79)			Immediately	$ 17.17
730	WR01F02892		Prod Serv Condenser   (Replaces: WR84X10022)				$ 403.54
732	WR02X22564		Clip Retainer Combo		Appelez-nous	-
735	WR08X21100		Tsd Combo		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR01F00846		Grommet   (Replaces: WR02X10099)				$ 7.15
740	WG03A03157		P/s Dryer Kit R134a   (Replaces: WR86X96)			Immediately	$ 153.40
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
749	WR17X13159		Baffle Cond Air		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
753	WR02X10521		Brkt Cond Fan (mtg)		Appelez-nous	-
757	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
762	WR14X10199		Foam Strip Se Adh		Appelez-nous	-
764	WR2X9000		Clip, Cond Mnt		Appelez-nous	-
765	WR17X10763		Bracket Condenser Bar		Appelez-nous	-
775	WR17X10796		Cover Water Line		Appelez-nous	-
800	WR57X10040		Water Valve Assy W/o Gua				$ 71.10
801	WR55X22867		Board Main Asm		Appelez-nous	-
803	WR02X12025		Main Board Enclosure Asm		Appelez-nous	-
805	WR02X12265		Clamp Tube		Appelez-nous	-
806	WR01F01881		Tube Plastic   (Replaces: WR17X11625)				$ 15.88
	WG03L00274		Cup Fill				$ 6.30
	WG03A03078		Switch Interruptor   (Replaces: WG03L06695)			Immediately	$ 12.23
	WG04F04255		Drive Auger Disp				$ 30.18
	WR01A00003		Cover & Damper Asm			Immediately	$ 190.78
	WR01A00450		Lever Fz				$ 9.13
	WR01A00459		Hinge Btm And Pin Asm				$ 20.87
	WR01A00747		Bucket& Auger Asm- Service Kit				$ 214.72
	WR01A01450		Placa Ge				$ 14.29
	WR01F00791		Filter Asm. And Tube			Immediately	$ 23.80
	WR01F01730		Sensor Temp Ff			Immediately	$ 15.72
	WR01F01814		Distributeur Tube Asm			Immediately	$ 25.22
	WR01F03676		Interface Distributeur Asm.				$ 108.90
	WR03F04587		Lampe Diode Electroluminescente   (Replaces: WR01F03774)				$ 42.08
	WR01F04224		Board Main Asm			Immediately	$ 193.94
	WR01L00240		Top Hinge And Pin Asm				$ 30.35
	WR01L00728		Cubierta Entrada De Aire Ens				$ 102.57
	WR01L02559		Icemaker Asm   (Replaces: WR01L02566)			Immediately	$ 136.45
	WR01F00849		Grommet   (Replaces: WG03A00867)			Immediately	$ 3.97
	WR01L04630		Insert Module			Immediately	$ 68.21
	WR01L08726		Gasket Ff			Immediately	$ 68.98
	WR01L08733		Gasket Fz				$ 60.83
	WR01L08740		Grille Base				$ 36.28
	WR01L09252		Door Foam Asm Ff Slate				$ 375.09
	WR01L09614		Door Foam Asm Fz				$ 211.26
	WR01L04165		Gasket Evap Cover				$ 15.88
	PMMWF		Ref Water Filter Pharmaceutica   (Replaces: WG01F01839)			Immediately	$ 81.88
	WG03F00141		Compresseur Kit			Immediately	$ 797.08
	WG03A03157		Deshydrateur   (Replaces: WG03F00245)			Immediately	$ 153.40
	WG04F11911		Valve   (Replaces: WG03F00685)			Immediately	$ 94.13
	WG03F00903		Spring Closure				$ 68.16
	WG03F05844		Switch Light Fz   (Replaces: WG03F03565)			Immediately	$ 65.21
	WR02F04236		Blade Cond Fan Asm   (Replaces: WG03L00005)				$ 20.15
	WR01F00328		Solenoid & Arm   (Replaces: WG03L00190)				$ 151.81
