SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Machine Compartment

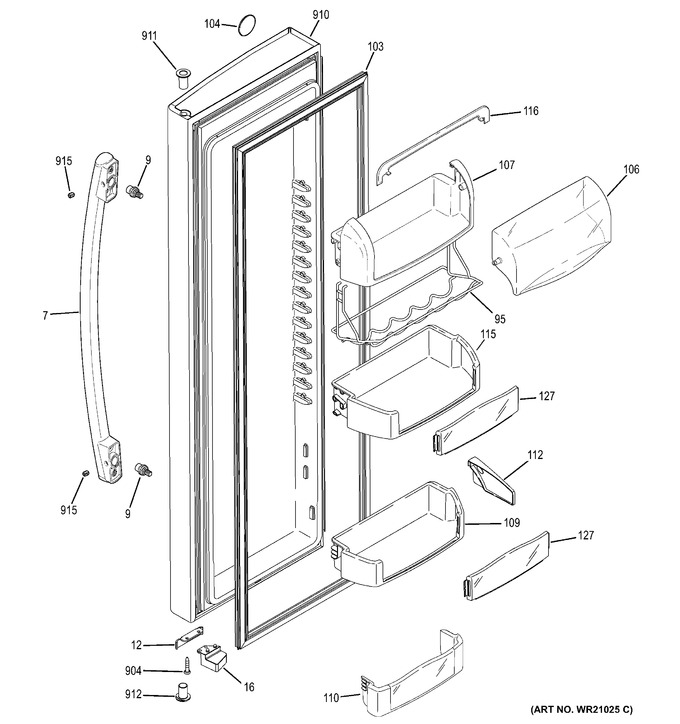

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X20441		Arc Handle Asm		Appelez-nous	-
9	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
12	WR01A00225		Door Stop   (Replaces: WR02X13425)				$ 12.40
16	WR01F01557		Cam Closure Fz Black   (Replaces: WR02X10779)				$ 36.53
95	WR17X12289		Wine & Beverage Rack		Appelez-nous	-
103	WR24X10157		Gasket Door Ff Bk**		Appelez-nous	-
104	WR01A01450		Badge Ge   (Replaces: WR04X10223)				$ 14.29
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10054		Compartment Dairy		Appelez-nous	-
109	WR71X10631		Module Shelf Ff		Appelez-nous	-
110	WR71X10630		Module Shelf Ff Fixed		Appelez-nous	-
112	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 31.76
115	WR71X10632		Module Shelf Ff		Appelez-nous	-
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L00085		Module Shelf Insert   (Replaces: WR71X10764)			Immediately	$ 11.81
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X22284		Door Foam Asm Ff Flat		Appelez-nous	-
911	WR01X10956		Thimble Door		Appelez-nous	-
912	WR01X10953		Thimble Door		Appelez-nous	-
915	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
