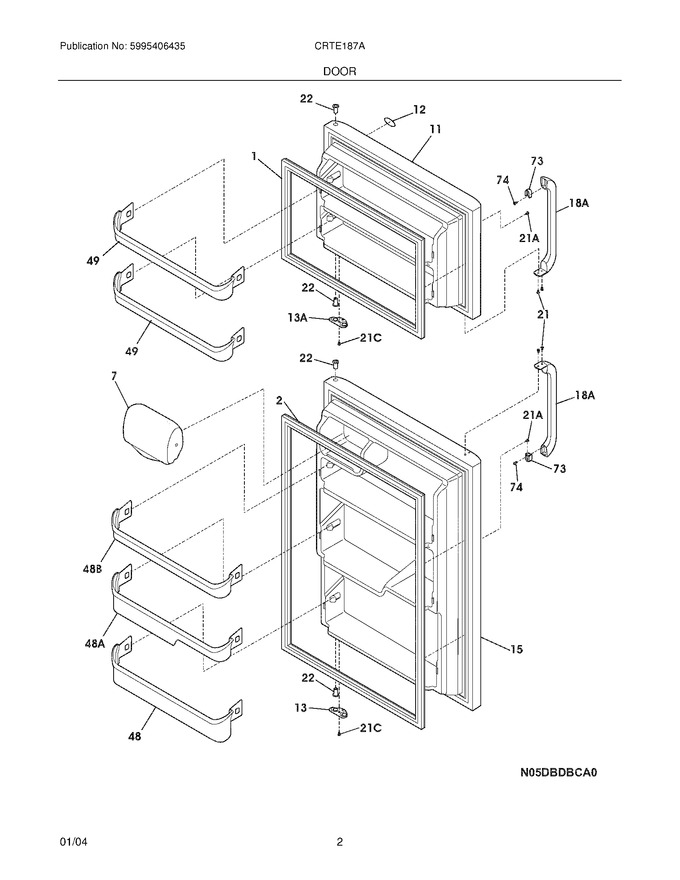

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 40.45 | ||||
| 11 | 240409909 | Door-frzr,stainless ,complete Assy |
|
- | |||||
| 12 | 240415207 | Label-nameplate,black |
|
$ 3.55 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 15 | 240410113 | Door-refr,stainless ,complete Assy |
|
- | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 58.19 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 48.10 | ||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 50.40 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.88 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 23.63 | |||||
| 18A | 218428121 | Handle-door,gray ,w/block & Screw |
|
$ 63.79 | |||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 (Replaces: 240521301) |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 38.84 | ||||
| F1 | 241872509 | Gasket-frzr Door,black ,magnetic (Replaces: 240542109) |
|
Immediately | $ 182.39 | ||||
| F2 | 241872512 | Gasket-refr Door,black ,magnetic (Replaces: 240542112) |
|
Immediately | $ 183.77 | ||||
| NI | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 23.63 |
