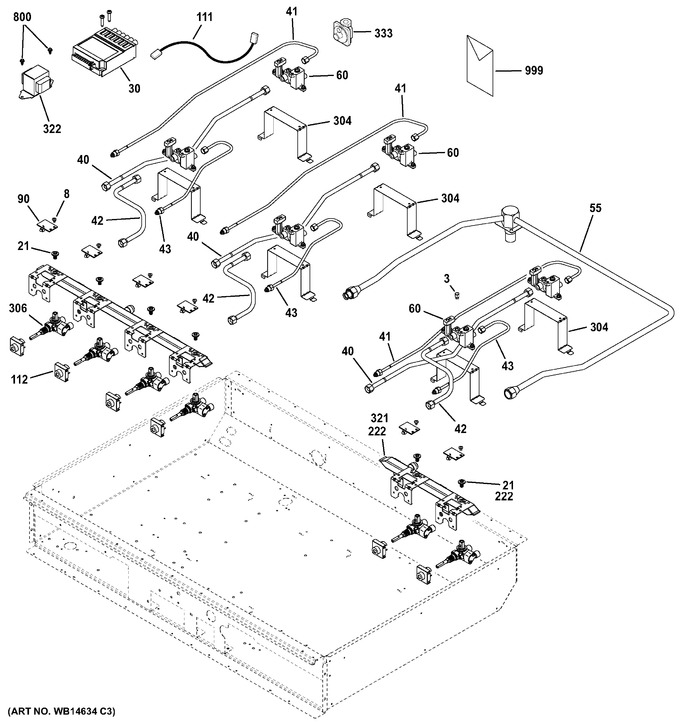

1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WB28K10530		Spud Orifice Grill		Appelez-nous	-
3	WS01F01437		Orifice Spud Lp Main   (Replaces: WB28T10117)				$ 4.17
3	WG02F01183		Orifice Spud (ng Simmer)   (Replaces: WB28T10159)			Immediately	$ 15.88
3	WS01F01438		Orifice Spud Lp Main   (Replaces: WB28T10118)			Immediately	$ 4.17
3	WG02F01190		Orifice Spud (ng Main)   (Replaces: WB28T10155)				$ 15.88
3	205C3297P006		Corner Control Panel		Appelez-nous	-
3	WB28K10529		Spud Orifice Griddle		Appelez-nous	-
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
30	WB13K10038		Module Spark 6+0		Appelez-nous	-
40	WB28K10509		Tube And Nut Asm		Appelez-nous	-
41	WB28K10511		Tube And Nut Asm		Appelez-nous	-
42	WB28K10510		Tube And Nut Asm		Appelez-nous	-
43	WB28K10512		Tube And Nut Asm		Appelez-nous	-
55	WS01F03072		Elbow Swaged Asm   (Replaces: WB28K10731)				$ 128.97
60	WB28T10114		Injet Burner 18k		Appelez-nous	-
111	WB18K10050		Harness Hv		Appelez-nous	-
112	WB18X23754		Harness Burner Box		Appelez-nous	-
304	WB02K10192		Bracket Injet		Appelez-nous	-
306	WB21K10162		Valve Dual		Appelez-nous	-
321	WB28K10549		Pipe Manifold Asm		Appelez-nous	-
322	WS01F02728		Transformer   (Replaces: WB27K10298)				$ 188.64
333	WS01F02320		Regulator   (Replaces: WB21K10137)				$ 141.48
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
999	49-85218		Pm Owners Manual		Appelez-nous	-
999	49-85219		Pm Owners Manual		Appelez-nous	-
999	WB02K10359		Tape Mastic 4" X 2"		Appelez-nous	-
999	31-17144		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	WG02A00015		Cleaner-ss   (Replaces: WB02T10111)				$ 23.22
