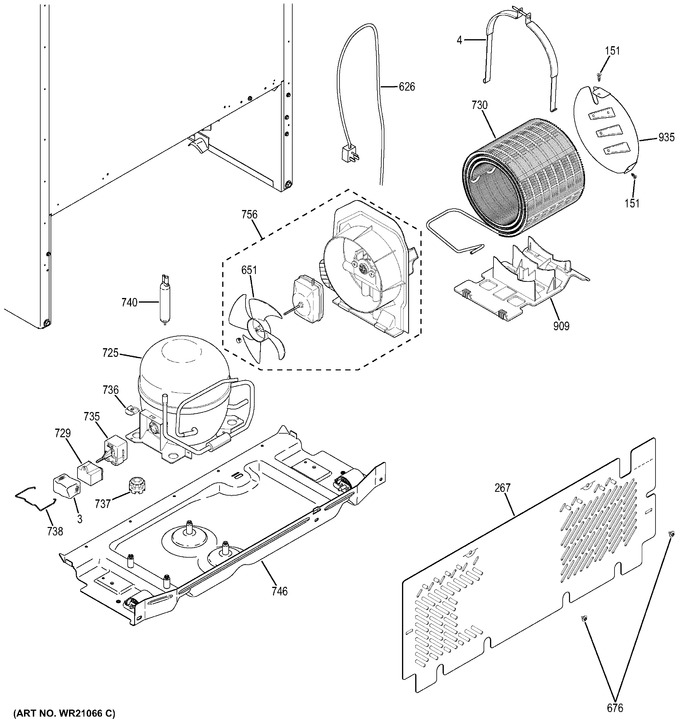

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Fresh Food Section
4 - Fresh Food Shelves
5 - Machine Compartment
6 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WR02X20733 | Sleeve Fiber Glass |
|
- | |||||
| 4 | WR01X21163 | Strap Cond Asm |
|
- | |||||
| 151 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 267 | WR82X23004 | Cover Access |
|
- | |||||
| 626 | WR55X22871 | Harness Mach Asm |
|
- | |||||
| 651 | WG03F10555 | Blade Cond Fan Asm (Replaces: WR60X10207) |
|
Immediately | $ 17.47 | ||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 725 | WR87X22876 | Compressor Embraco |
|
- | |||||
| 729 | WR55X20800 | Capacitor |
|
- | |||||
| 730 | WR84X22864 | Condenser Formed Asm |
|
- | |||||
| 735 | WR08X22874 | Tsd Combo |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR02X22869 | Grommet |
|
- | |||||
| 738 | WR02X12004 | Clip Retainer Mei |
|
- | |||||
| 740 | WR86X21265 | Dryer |
|
- | |||||
| 746 | WR17X23003 | Baseplate Stud Asm |
|
- | |||||
| 756 | WR17X21162 | Fan Housing Asm |
|
$ 115.45 | |||||
| 909 | WR02X21166 | Support Condenser |
|
- | |||||
| 935 | WR17X21164 | Baffle Condenser |
|
- |
