SELECT A DIAGRAM

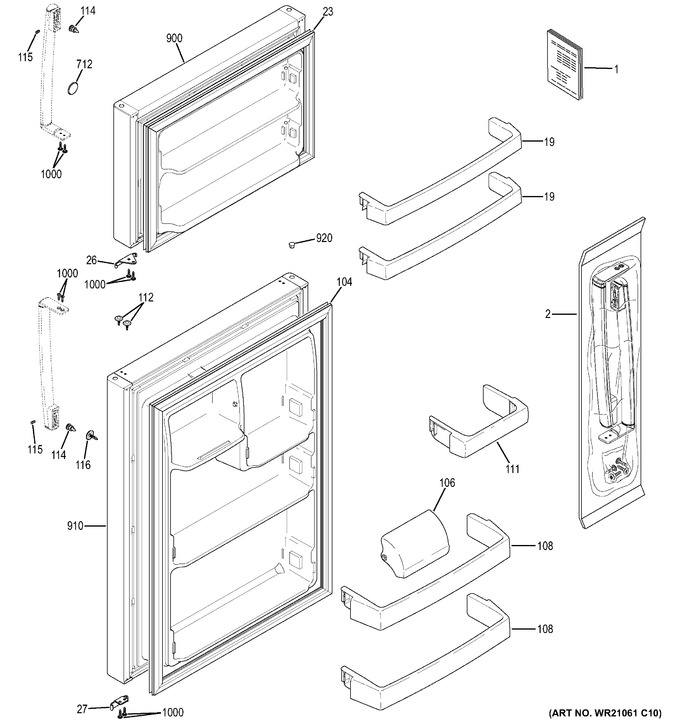

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WR12X21383		Pk Handle Ss Asm		Appelez-nous	-
19	WG03L01680		Shelf Front Full Fz   (Replaces: WR71X10681)				$ 76.98
23	WR24X23009		Gasket Door Fz Dg		Appelez-nous	-
26	WR02X21233		Stop Door		Appelez-nous	-
27	WR02X21232		Stop Door		Appelez-nous	-
104	WR24X23008		Gasket Door Ff Dg		Appelez-nous	-
106	WG03L09118		Door Dairy Clear   (Replaces: WR22X10024)				$ 63.72
108	WG03F03746		Bin Fixed Raingutter Gal   (Replaces: WR71X10525)				$ 133.54
111	WG03L01575		Shelf Front Half Ff   (Replaces: WR71X10682)				$ 72.54
112	WR02X21241		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21240		Fastener Door Handle		Appelez-nous	-
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
116	WR02X21242		Plug Door Rvsbl				$ 1.15
712	WR02X21156		Badge Asm Ge		Appelez-nous	-
900	WR24X23030		Door Foam Asm Fz Ss		Appelez-nous	-
910	WR24X23029		Door Foam Asm Ff Ss		Appelez-nous	-
920	WR02X21663		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
