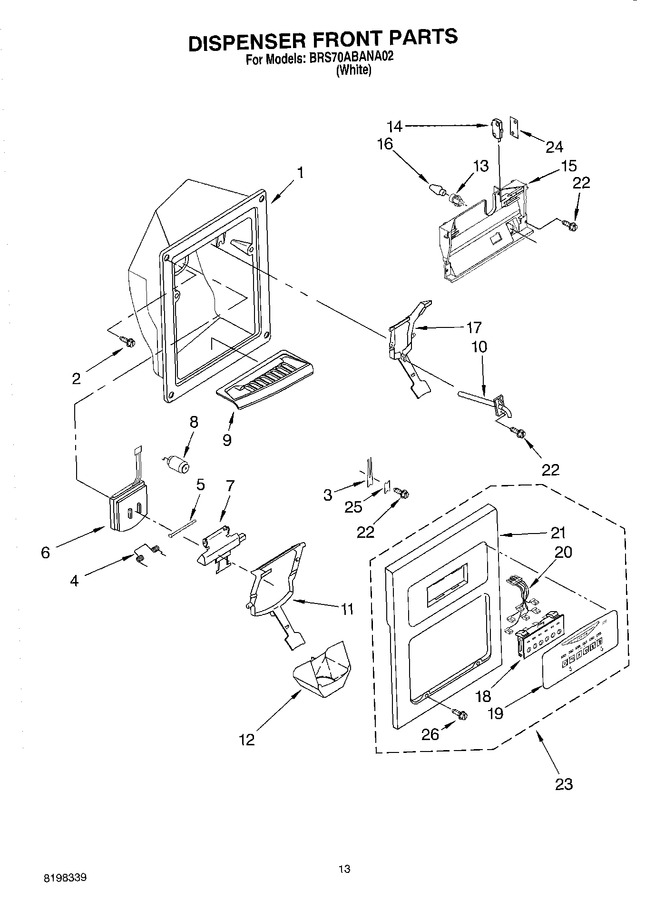

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 3 | WP2194719 | Retainer, Levers (Replaces: 2194719) |
|
Immediately | $ 11.12 | ||||
| 4 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 78.66 | |||||
| 5 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 13.78 | |||||
| 6 | WP2180353 | Ice Door (Replaces: 2180352) |
|
Immediately | $ 24.15 | ||||
| 7 | 2206423 | Door Mechanism Assembly |
|
- | |||||
| 8 | 2205686 | Mechanism Delay |
|
- | |||||
| 9 | 2207007W | Grille, Overflow |
|
$ 29.56 | |||||
| 10 | 8201537 | Water Fitting (includes Water Tube) (Replaces: 2209718) |
|
$ 126.76 | |||||
| 11 | WP2203562W | Lever, Ice Dispenser (Replaces: 2203562W) |
|
$ 101.74 | |||||
| 12 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.02 | ||||
| 13 | 2180200 | Lamp Holder |
|
$ 93.23 | |||||
| 14 | WP2162361 | Switch (4) (Replaces: 2162361) |
|
Immediately | $ 25.84 | ||||
| 15 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.27 | ||||
| 16 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 17 | 2203561W | Lever, Water Dispenser |
|
$ 90.70 | |||||
| 18 | WP2180236 | Switch Assembly (also Order 19) (Replaces: 2180236) |
|
$ 259.20 | |||||
| 19 | 2214336W | Overlay, Front Cover |
|
- | |||||
| 20 | 2311650 | Wire Assembly (Replaces: 2187409) |
|
$ 84.74 | |||||
| 22 | WP3400906 | Screw (Replaces: 489000) |
|
$ 8.15 | |||||
| 23 | 2214337W | Front Cover Assembly (includes Items 18, 19, 20 & 21) |
|
- | |||||
| 24 | 625834 | Spacer, Switch (2) |
|
$ 7.99 | |||||
| 25 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.29 | |||||
| 26 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.36 |
