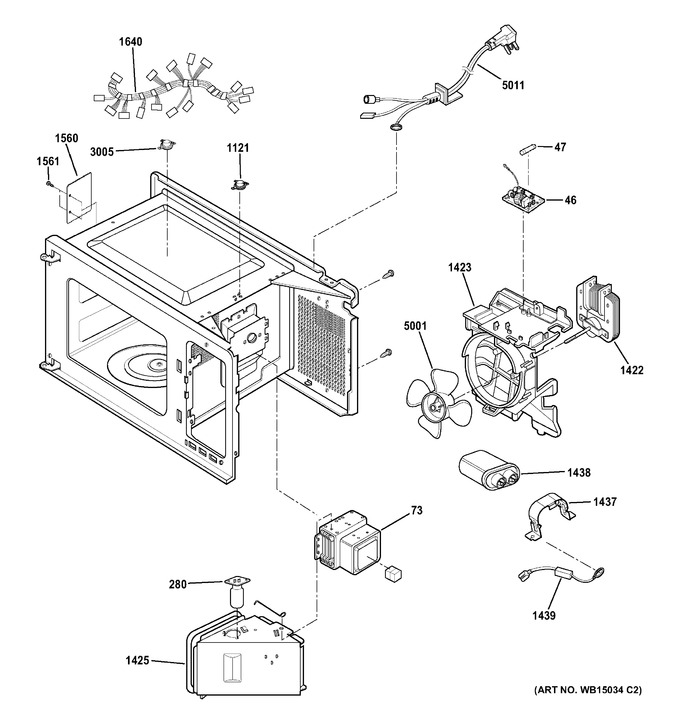

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 46 | WB27X11140 | Filter Noise |
|
- | |||||
| 47 | WB27X11151 | Fuse |
|
- | |||||
| 73 | WB27X11147 | Magnetron |
|
- | |||||
| 280 | WB25X10025 | Lamp |
|
- | |||||
| 1121 | WB20X10056 | Thermostat 120/0 *h |
|
- | |||||
| 1422 | WB26X10257 | Fan Motor |
|
- | |||||
| 1423 | WB38X10158 | Guide,suction |
|
- | |||||
| 1425 | WB06X10870 | Duct |
|
- | |||||
| 1437 | WB02X11524 | H.v.c Holder |
|
- | |||||
| 1438 | WB27X11148 | H.v.capacitor |
|
- | |||||
| 1439 | WB27X11149 | H.v.diode |
|
- | |||||
| 1560 | WB06X10906 | Cover, Mica |
|
- | |||||
| 1561 | WB01X10418 | Plastic Nail |
|
- | |||||
| 1640 | WB18X23804 | Harness Main |
|
- | |||||
| 3005 | WB24X10191 | Thermostat 160/95 *h |
|
- | |||||
| 5001 | WB38X10159 | Fan |
|
- | |||||
| 5011 | WB18X21330 | Power Cord Asm |
|
- |
