SELECT A DIAGRAM

1 - Door Parts


2 - Control Parts


3 - Oven Cavity Parts


4 - Latch Board Parts


5 - Interior Parts (1)


6 - Interior Parts (2)

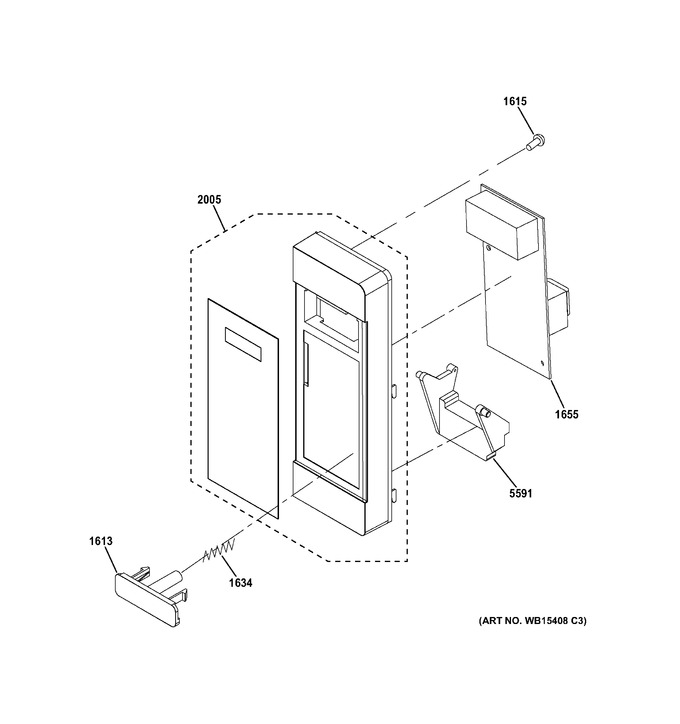

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1613	WB03X23855		Door Button, Wh		Appelez-nous	-
1615	WB01X10431		Screw St412pwbhc		Appelez-nous	-
1634	WB09X10043		Spring Button		Appelez-nous	-
1655	WB27X23805		Pcb Asm		Appelez-nous	-
2005	WB56X23852		Control Panel Subasm, Wh		Appelez-nous	-
5591	WB06X10869		Lever Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
