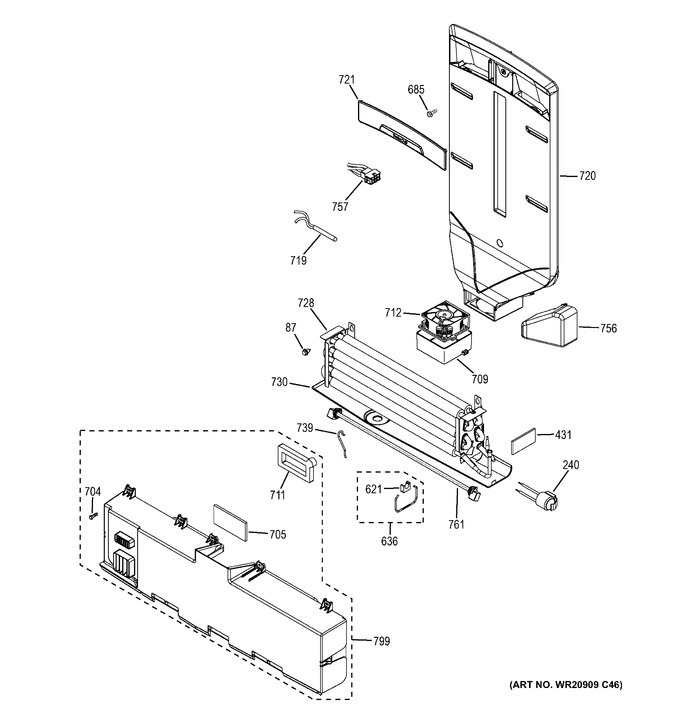

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
87	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
240	WR50X10109		Thermostat Defrost Ff		Appelez-nous	-
431	WR02X13725		Block Evap Seal		Appelez-nous	-
621	WR02X10518		Holder Element		Appelez-nous	-
636	WR02X13678		Holder Element Asm		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
704	WR01X11061		Scr 8-18 Hi/lo Hwx 3/4		Appelez-nous	-
705	WR02X13731		Gasket Ff Fan Front		Appelez-nous	-
709	WR24X10292		Boot Fan Ff Motor		Appelez-nous	-
711	WR24X10289		Gasket Damper Mp		Appelez-nous	-
712	WR60X20880		Fan Dc Ff Evap		Appelez-nous	-
719	WR55X11152		Sensor Temperature		Appelez-nous	-
720	WR17X22149		Duct Tower Asm Ff		Appelez-nous	-
721	WR17X13243		Diverter & Badge Asm		Appelez-nous	-
728	WR85X10154		Evap & Tube Asm Ff		Appelez-nous	-
730	WR17X13091		Trough Drain Ff		Appelez-nous	-
739	WR51X10133		Heater Conduction Ff		Appelez-nous	-
756	WR17X13048		Cover Connector Ff Fan		Appelez-nous	-
757	WR23X10753		Heater Harness Ff		Appelez-nous	-
761	WR51X10132		Heater Def Asm Ff		Appelez-nous	-
799	WR17X13142		Evap Cover Asm Ff		Appelez-nous	-
