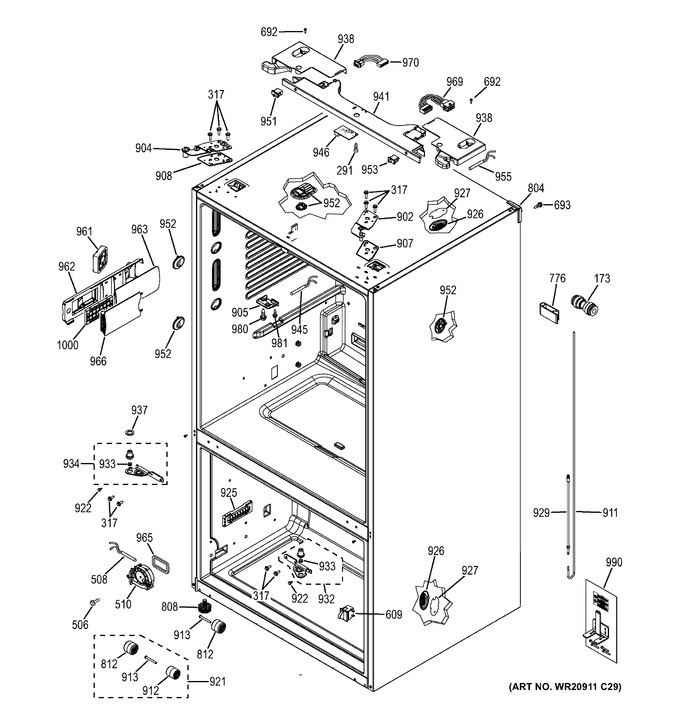

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 173 | WR02X13738 | Coupler Straight 1/4 |
|
- | |||||
| 291 | WR01X10649 | Scr 8-10 Pl Pnp 1/2 S |
|
- | |||||
| 317 | WR01X11049 | Scr 1/4-20 Hxw 7/8 S |
|
- | |||||
| 506 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.97 | |||||
| 508 | WR55X11151 | Sensor Temperature |
|
- | |||||
| 510 | WR60X10342 | Fan Motor Im Asm / Senso |
|
$ 138.51 | |||||
| 609 | WG03F09086 | Switch Light (Replaces: WR23X10143) |
|
Immediately | $ 11.12 | ||||
| 692 | WZ04X0416 | Scr 8-18 Ab Hxw 3/4 |
|
- | |||||
| 693 | WR01X10593 | Scr 8-18 Ab Ihxw 3/4 S |
|
- | |||||
| 776 | WG03A00749 | Clamp Tube (Replaces: WR02X10522) |
|
$ 9.25 | |||||
| 804 | WR02X13759 | Cap Case Corner Asm Dgy |
|
- | |||||
| 808 | WR01X11046 | Screw Leveling Asm |
|
- | |||||
| 812 | WR02X13694 | Wheel Overmold Asm Rear |
|
- | |||||
| 902 | WR13X10974 | Hinge Top Pin Asm Rh |
|
- | |||||
| 904 | WR13X10975 | Hinge Top Pin Asm Lh |
|
- | |||||
| 905 | WR02X13716 | Striker Top Mullion |
|
- | |||||
| 907 | WR02X13717 | Pad Top Hinge Asm Rh |
|
- | |||||
| 908 | WR02X13718 | Pad Top Hinge Asm Lh |
|
- | |||||
| 911 | WR02X13673 | Tubing Pex 55.3 In |
|
- | |||||
| 912 | WR02X13685 | Wheel |
|
- | |||||
| 913 | WR01X11008 | Axle Wheel |
|
- | |||||
| 921 | WR49X10268 | Front/rear Wheel & Axle |
|
- | |||||
| 922 | WR01X11037 | Scr8-32 Tt Pnt 5/8s |
|
- | |||||
| 925 | WR02X13623 | Louver Duct Im Return Fz |
|
- | |||||
| 926 | WG03F02951 | Grille Thermistor (Replaces: WR02X13729) |
|
$ 6.09 | |||||
| 927 | WR01X11066 | Shunt Sensor |
|
- | |||||
| 929 | WR02X13774 | Tube Lead |
|
- | |||||
| 932 | WR13X10976 | Hinge Center Asm Rh |
|
- | |||||
| 933 | WR01X11016 | Screw Hinge Ctr Adj |
|
- | |||||
| 934 | WG03L05321 | Hinge Center Asm Lh (Replaces: WR13X10982) |
|
$ 68.68 | |||||
| 937 | WG03A00275 | Washer Hinge Center Lh (Replaces: WR01X11047) |
|
Immediately | $ 9.53 | ||||
| 938 | WR17X20164 | Hinge Endcap Asm Dgy |
|
- | |||||
| 941 | WR17X13217 | Top Cover Middle Dgy |
|
- | |||||
| 945 | WR55X11150 | Sensor Temperature |
|
- | |||||
| 946 | WR55X21964 | Pcb Asm Sensor Hw |
|
- | |||||
| 951 | WR23X10749 | Switch Light Ff |
|
- | |||||
| 952 | WG03L00855 | Cover Led Asm, Ff (Replaces: WR55X11132) |
|
Immediately | $ 76.82 | ||||
| 953 | WR23X10750 | Switch Light Ff |
|
- | |||||
| 955 | WR55X11153 | Sensor Temperature |
|
- | |||||
| 961 | WR60X10353 | Fan Filter Asm |
|
- | |||||
| 962 | WR02X13744 | Housing Filter |
|
- | |||||
| 963 | WR02X13745 | Cover Filter Fan |
|
- | |||||
| 965 | WR14X10384 | Gasket Duct Fan Im |
|
- | |||||
| 966 | WR02X13757 | Cover Filter Asm |
|
- | |||||
| 969 | WR23X10779 | Harness Door Switch Ac |
|
- | |||||
| 970 | WR23X10777 | Harness Door Case |
|
- | |||||
| 980 | WR01X11060 | Scr 8-18 Ab Hxwp 9/16s |
|
- | |||||
| 981 | WR01X11065 | Scr 8-18 Ab Flp 3/4 S Zn |
|
- | |||||
| 990 | WR02X13770 | Kit Anti Tip Asm |
|
- | |||||
| 1000 | WG03F03764 | Odor Filter Cartridge (Replaces: ODORFILTER) |
|
$ 160.54 |
