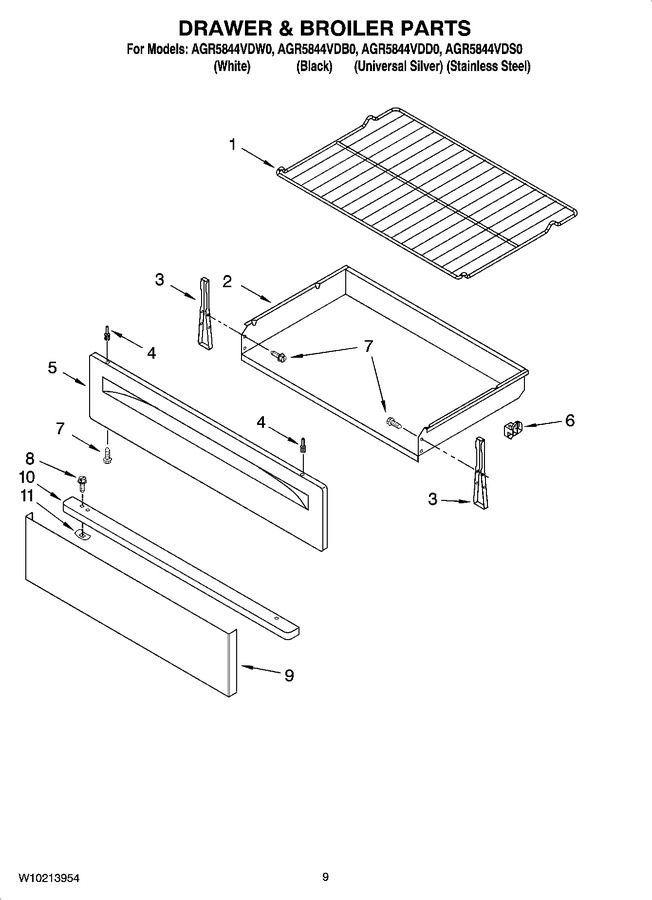

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: W10179196)			Immediately	$ 46.84
2	9761031		Drawer, Storage		Appelez-nous	-
3	W10174397		Bracket, Drawer(2)				$ 38.13
4	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
4	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
5	9762180		Panel, Drawer Frnt (universal Silver)		Appelez-nous	-
5	W11230486		Panel, Drawer Frnt (white)   (Replaces: W10022090)				$ 211.49
5	W11230490		Panel, Drawer Frnt (black)   (Replaces: W10022100)				$ 211.59
6	WP8053334		Spacer, Glide   (Replaces: 8053334)			Immediately	$ 7.84
7	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
8	WP3196567		Screw(stls. Model)   (Replaces: 3196567)				$ 8.06
9	W10133364		Panel(stls. Model)		Appelez-nous	-
10	W10197980		Handle(stls. Mdl)				$ 57.05
11	WP9781235		Clip(stls. Model)   (Replaces: 9781235)				$ 12.56
NI	W11839019		Anti-tip Kit   (Replaces: W10017440)			Immediately	$ 28.54
NI	W10182840		Harness, Main (eoc Pyro)		Appelez-nous	-
NI	WPW10701462		Harness, Wire (bake/broil)   (Replaces: W10170250)				$ 100.67
NI	W10322362		Harness, Wire (cooktop Spark)   (Replaces: W10174458)				$ 50.14
NI	W10045060		Harness, Wire (ground)				$ 8.97
NI	3196896		Clip, Wire		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3196696		Clip, Harness		Appelez-nous	-
NI	WP3196174		Screw-grnd Harns   (Replaces: 3196174)			Immediately	$ 8.44
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 12.30
NI	W11244557		Screw   (Replaces: 3196173)				$ 14.29
NI	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 87.22
NI	261582		Grease		Appelez-nous	-
NI	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
NI	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
NI	511873		Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.)				$ 51.75
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 40.12
NI	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)				$ 59.89
NI	350942		Paint, Pressurized Spray (12 Oz.) (primer) (white)   (Replaces: 206922)				$ 94.14
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
NI	4396923		Pan, Broiler			Immediately	$ 60.71
