SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves

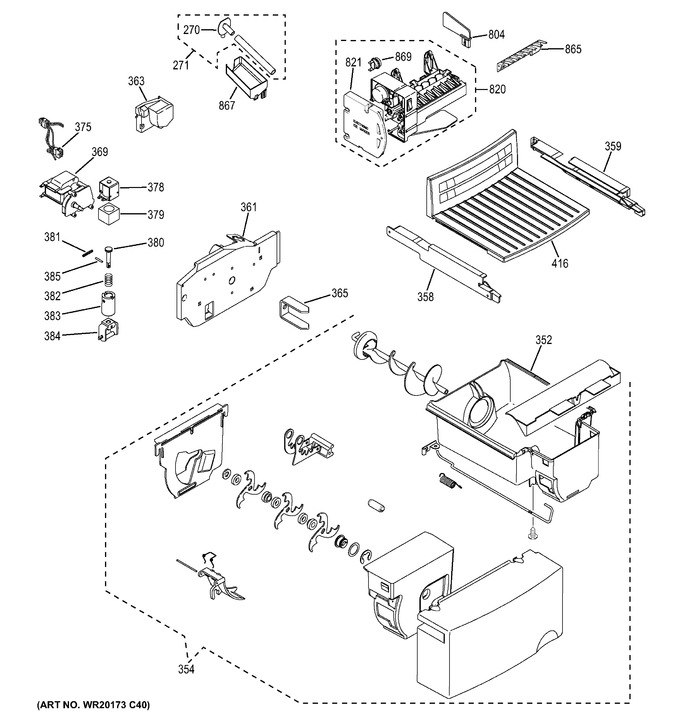

5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
270	WG03F00304		Grommet And Gasket Assy   (Replaces: WR02X10967)				$ 23.82
271	WR17X11506		Grommet And Tube Asm		Appelez-nous	-
352	WR30X10084		Bucket Ice Disp		Appelez-nous	-
354	WR17X23255		Bucket And Auger Asm		Appelez-nous	-
358	WR01F03332		Glide Bucket Lh Disp   (Replaces: WR72X10233)				$ 63.53
359	WR72X10380		Glide Bucket Rh Disp		Appelez-nous	-
361	WR17X12810		Cover Motor Front		Appelez-nous	-
363	WR17X12735		Cover, Auger Motor Rear		Appelez-nous	-
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 30.18
369	WG03F00432		Motor Crusher Disp   (Replaces: WR60X10258)				$ 193.30
375	WR23X10551		Harness Motor Disp		Appelez-nous	-
378	WR01F00328		Solenoid & Arm Asm   (Replaces: WR62X58)				$ 151.81
379	WR17X12811		Shroud Solenoid		Appelez-nous	-
380	WR02X13138		Plunger Solenoid		Appelez-nous	-
381	WR01F00328		Pin Spiral   (Replaces: WR2X4257)				$ 151.81
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Display   (Replaces: WR17X1065)				$ 151.81
384	WR02X13139		Stirrup Solenoid Disp		Appelez-nous	-
385	WR01F00328		Pin Spiral   (Replaces: WR2X4259)				$ 151.81
416	WR17X12911		Shelf Chiller		Appelez-nous	-
804	WR29X10054		Im Guardrail		Appelez-nous	-
820	WR30X10102		Icemaker Imx 120v		Appelez-nous	-
821	WR29X10080		Cover		Appelez-nous	-
865	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10058		Cup Fill Im		Appelez-nous	-
869	WG03F02311		Thermostat   (Replaces: WR29X157)				$ 63.60

    View Diagram in Separate Window       Print Part List
