View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

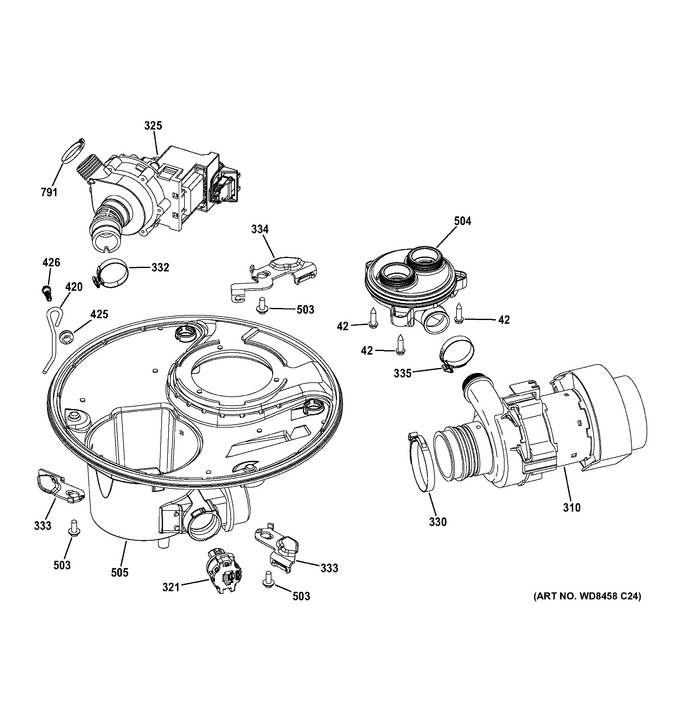

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD35X10385 | Wash Pump Kit |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 45.83 | |||||
| 325 | WG04F12108 | Pump Drain Kit (Replaces: WD35X20553) |
|
Immediately | $ 187.57 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WG04F06743 | Sump Manifold (Replaces: WD18X10054) |
|
$ 66.87 | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 11.44 | |||||
| WG04A01155 | Kit-inner Door & Latch |
|
$ 124.60 | ||||||
| WG04L06024 | Gasket Tub Plastic (Replaces: WG04L05410) |
|
Immediately | $ 82.96 | |||||
| WG04A01013 | Plaque Marque |
|
$ 21.44 | ||||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 82.96 | |||||
| WG04L01820 | Outer Door Front Ctrl Ss |
|
$ 156.10 | ||||||
| WG04L06024 | Gasket Tub Plastic (Replaces: WG04L01701) |
|
Immediately | $ 82.96 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F09253) |
|
Immediately | $ 97.86 | |||||
| WG04F08972 | Gasket Beach Plastic |
|
Immediately | $ 13.03 | |||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 90.18 | |||||
| WG04F04727 | Lid Switch |
|
$ 87.78 | ||||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 62.96 | |||||
| WG04F04609 | Drain Tube Asm |
|
Immediately | $ 38.64 | |||||
| WG04F04517 | Cable Asm Pulley |
|
Immediately | $ 17.15 | |||||
| WG04A03393 | Kit Main Board |
|
$ 200.30 | ||||||
| WG04F12108 | Ens. Pompe De Vidange (Replaces: WG04A02642) |
|
Immediately | $ 187.57 | |||||
| WG04A03398 | Spring Door (Replaces: WG04A02155) |
|
Immediately | $ 11.44 | |||||
| WG04A01338 | Wash Pump Kit |
|
$ 200.56 |
