View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

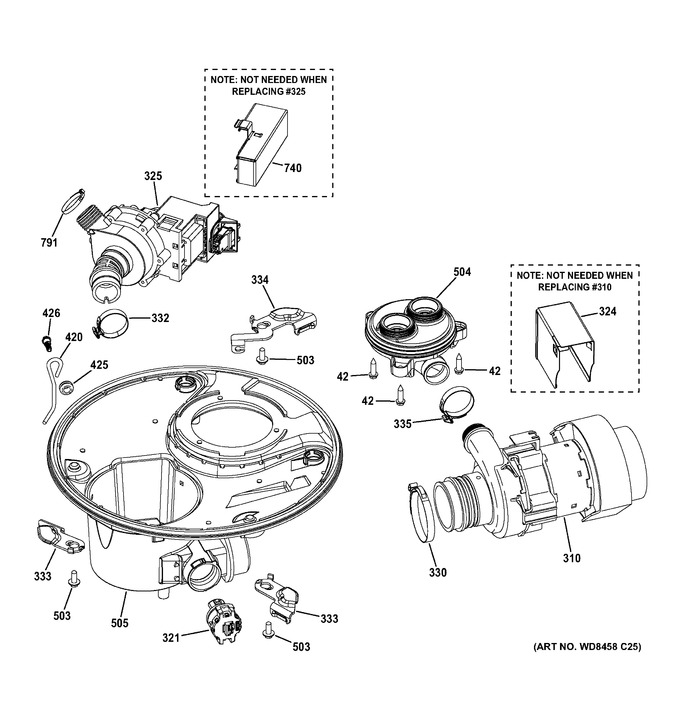

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD35X10385 | Wash Pump Kit |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 324 | WD01X10580 | Shield Wash Pump |
|
- | |||||
| 325 | WG04F12108 | Pump Drain Kit (Replaces: WD35X20553) |
|
Immediately | $ 208.41 | ||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 21.85 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WG04F06743 | Sump Manifold (Replaces: WD18X10054) |
|
$ 66.87 | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F05889) |
|
Immediately | $ 76.30 | |||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F09673 | Console Cvr Graphic Asm (Replaces: WG04F04562) |
|
Immediately | $ 67.82 | |||||
| WG04F04555 | Assemblage |
|
$ 47.15 | ||||||
| WG04A03393 | Board Main Control (Replaces: WG04F04510) |
|
$ 222.56 | ||||||
| WG04A03393 | Kit Main Board |
|
$ 222.56 | ||||||
| WG04A01461 | Kit Door Inner Asm (Replaces: WG04A02903) |
|
Immediately | $ 185.86 | |||||
| WG04F12108 | Pump Drain Kit (Replaces: WG04A02642) |
|
Immediately | $ 208.41 | |||||
| WG04A04452 | Carrier Roller Rh (Replaces: WG04A02188) |
|
Immediately | $ 15.88 | |||||
| WG04A01785 | Service Kit Wash |
|
$ 45.86 | ||||||
| WG04A01338 | Pompe |
|
$ 200.56 | ||||||
| WG01A01600 | Screw Leveling (Replaces: WG04A01265) |
|
Immediately | $ 9.53 | |||||
| WG04L06024 | Gasket Tub Plastic (Replaces: WG04L05410) |
|
Immediately | $ 92.18 | |||||
| WG04A01134 | Attache |
|
Immediately | $ 21.85 | |||||
| WG04A03280 | Support (Replaces: WG04A01050) |
|
Immediately | $ 30.76 | |||||
| WG04A01160 | Assemblage Bras Gicleur |
|
$ 83.84 | ||||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04L03753 | Tray Utility Asm |
|
$ 49.56 | ||||||
| WG04L03749 | Basket Silverware Asm |
|
$ 87.93 | ||||||
| WG04L03555 | Plate Detergent |
|
$ 9.53 | ||||||
| WG04L03283 | Outer Door Top Ctrl Ss |
|
$ 252.62 | ||||||
| WG04L03119 | Door Gasket |
|
$ 14.55 | ||||||
| WG04L02133 | Door Handle Asm |
|
$ 134.66 | ||||||
| WG04L02091 | Cover Roller Rh |
|
Immediately | $ 58.52 | |||||
| WG04L02003 | Brkt Support Hinge Asm |
|
$ 78.04 | ||||||
| WG04L02002 | Brkt Support Hinge Asm |
|
$ 76.77 | ||||||
| WG04A04447 | Roller Lower Rack (Replaces: WG04L01875) |
|
Immediately | $ 4.52 | |||||
| WG04L01634 | Door Vent Seal |
|
Immediately | $ 11.12 | |||||
| WG04F09673 | Console Cvr Graphic Asm |
|
Immediately | $ 67.82 | |||||
| WG04F11770 | Valve Water Asm (Replaces: WG04F09310) |
|
Immediately | $ 76.30 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F09253) |
|
Immediately | $ 108.73 | |||||
| WG04F07745 | Interface User Top |
|
$ 194.10 | ||||||
| WG04F06981 | Silicone Light Pipe |
|
$ 71.19 |
