SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment

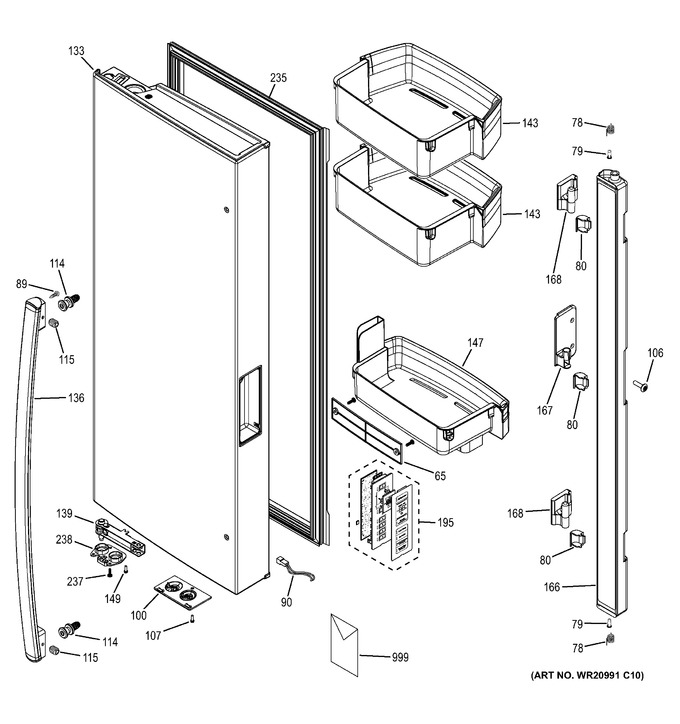

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
65	WR02X13730		Cover Harness		Appelez-nous	-
78	WG03L05095		Spring Hinge Mullion   (Replaces: WR01X11052)			Immediately	$ 10.86
79	WR01X11053		Sleeve Spring Mullion		Appelez-nous	-
80	WR02X13739		Hinge Cap		Appelez-nous	-
89	WR01X11044		Scr 10-32 B Rns .353 S		Appelez-nous	-
90	WR23X10755		Harness Led Jumper		Appelez-nous	-
100	WR55X23636		Cover Led Fz Asm		Appelez-nous	-
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
107	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
114	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
133	WR78X23635		Door Foam Asm Ff Lh Nd		Appelez-nous	-
136	WR12X20678		Arc Handle Asm Ff Bb		Appelez-nous	-
139	WR11X23324		Closure Door Asm Lh Nd		Appelez-nous	-
143	WR71X11055		Bin Gal Lh Ff Asm		Appelez-nous	-
147	WR71X11054		Bin Cond Lh Ff Asm		Appelez-nous	-
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
166	WR17X13116		Mullion Asm Bk		Appelez-nous	-
167	WR13X10984		Hinge Center Mullion		Appelez-nous	-
168	WR13X10985		Hinge Mullion		Appelez-nous	-
195	WR55X22151		Control Lh Door Side Asm		Appelez-nous	-
235	WR14X10371		Gasket Ff Bk		Appelez-nous	-
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
238	WR02X13634		Stop Door Rh/lh Asm		Appelez-nous	-
999	49-60714		Pm Quick Use & Care		Appelez-nous	-
999	31-49043		Pm Quick Install Guide		Appelez-nous	-
999	31-51895		Pm Mini Manual 29 Good		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
