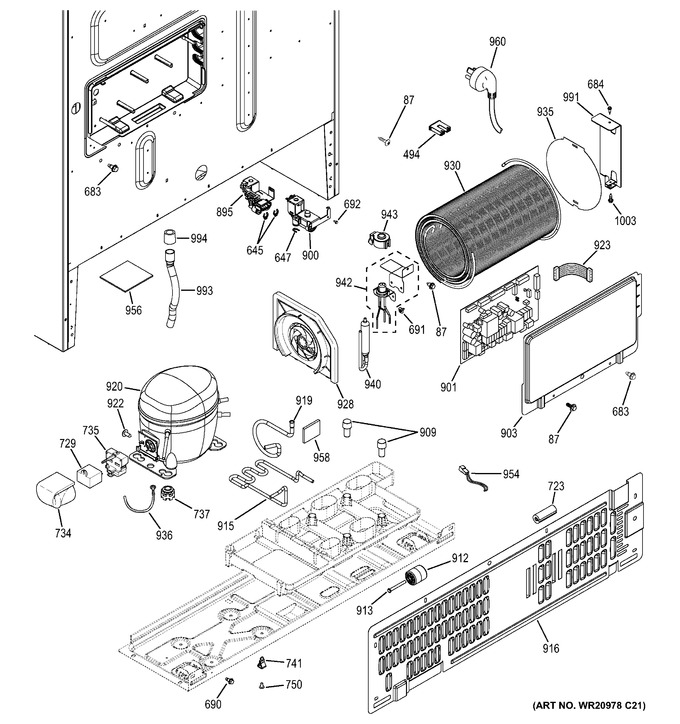

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts


9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
87	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
645	WR01X11020		Clip Connector 1/4		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
683	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
690	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
691	WR01X10897		Scr 12-24tt Bht20 .700 S		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
723	WR14X10055		Grommet Tubing Slit		Appelez-nous	-
729	WR55X23628		Capacitor		Appelez-nous	-
734	WR02X20733		Sleeve Fiber Glass		Appelez-nous	-
735	WG03F01425		Combo Device Tsd-2   (Replaces: WR08X10111)			Immediately	$ 55.98
737	WR02X13719		Grommet Compressor		Appelez-nous	-
741	WR01X20885		Stud Mtg Compressor		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
895	WR55X11146		Valve Im Water Asm		Appelez-nous	-
900	WG03F01801		Valve Water Iso Asm   (Replaces: WR55X11128)				$ 79.46
901	WR55X20881		Board Asm Main Control		Appelez-nous	-
903	WR02X13714		Cover Mainboard		Appelez-nous	-
909	WR02X13668		Support Condenser		Appelez-nous	-
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
915	WR84X23630		Jumper Comp Discharge		Appelez-nous	-
916	WR82X10127		Cover Access		Appelez-nous	-
919	WR87X23634		Tube Suction Jumper		Appelez-nous	-
920	WR87X23629		Compressor Asm Embraco		Appelez-nous	-
922	WR01X11037		Scr8-32 Tt Pnt 5/8s		Appelez-nous	-
923	WR55X23632		Harness Personality		Appelez-nous	-
928	WR60X23363		Fan Gasket Asm		Appelez-nous	-
930	WR84X10115		Condenser Asm Formed		Appelez-nous	-
935	WR17X13045		Baffle Cond Air		Appelez-nous	-
936	WR23X10748		Harness Ground		Appelez-nous	-
940	WR86X10089		Dryer Filter		Appelez-nous	-
942	WR86X10094		Valve Body Asm		Appelez-nous	-
943	WR86X10091		Coil 3 Way Valve		Appelez-nous	-
954	WR23X10768		Harness Doghouse		Appelez-nous	-
956	WR02X13713		Pad Mastic		Appelez-nous	-
958	WR02X13724		Mastic Sound Deadening		Appelez-nous	-
960	WG03F01799		Power Cord   (Replaces: WR23X10744)				$ 61.96
991	WR02X13622		Bracket Condenser		Appelez-nous	-
993	WR02X13710		Tube Trap Drain		Appelez-nous	-
994	WR01X11006		Check Valve		Appelez-nous	-
1003	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
	WG03L06942		Handle Fz Asm   (Replaces: WG03L00837)				$ 173.80
	WG03L00842		Fz Fan And Felt Asm			Immediately	$ 117.18
	WG03L00848		Glass Veg Pan				$ 91.11
	WG03L05079		Bin Gal Lh Ff Asm				$ 88.99
	WG03L05427		Slide Basket Upper Rh/lh				$ 76.30
	WG03L05690		Slide Fz Lower Rh				$ 66.47
	WG03L05691		Slide Fz Lower Lh				$ 93.93
	WG03L05814		Door Asm Ff Bow Rh Es		Appelez-nous	-
	WG03L06679		Door Foam Asm Ff Lh Nd Es		Appelez-nous	-
	WG03L07665		Pk Door Rh Asm Ps				$ 400.45
	WG03L07675		Lh Ff Nondisp Door Srvc.				$ 955.64
	WG03F01801		Valve Water Isolation				$ 79.46
	WG04A01013		Badge Ge Asm				$ 23.82
	WR01F01730		Sensor Temp Ff			Immediately	$ 15.72
	WG03F01799		Power Cord				$ 61.96
	WG03F01425		Overload Ptcr Combo			Immediately	$ 55.98
	WG03F03931		Mullion Articulating Asm				$ 158.26
	WG03F06744		Boot Fan Ff   (Replaces: WG03F03998)			Immediately	$ 31.76
	WG03F05911		Valve Im Water Asm   (Replaces: WG03F04048)				$ 164.50
	WG03F04056		Ctrl Lh Door Side Asm Sl				$ 95.46
	WG03F04094		Bin Cond Lh Ff Asm				$ 114.30
	WG03F04848		Fan Dc Ff Evap		Appelez-nous	-
	WG03L09517		Ice Maker Asm   (Replaces: WG03F04890)			Immediately	$ 209.83
	WG03F04933		Control Lh Door Side Asm				$ 191.72
	WG03F04938		Egd60 Compressor Kit				$ 890.96
	WG03F04941		Harness Jumper				$ 169.70
	WG03F04942		Fan Gasket Asm			Immediately	$ 158.26
	WG03F05706		Board Asm Main Control				$ 569.26
	WG03F05740		Ap5 Nidec Ff Fan Conversion Cc				$ 196.47
	WG03F05190		Arc Handle Asm Ff   (Replaces: WG03L00829)				$ 181.23
